These products emulate standard Legacy Serial (RS-232 and RS-485) over 2G/3G and 4G/LTE cellular networks. This allows legacy equipment based on traditional serial data communications to be utilized. These legacy devices include ATM machines, Fire Alarms, Elevators and industrial machines.

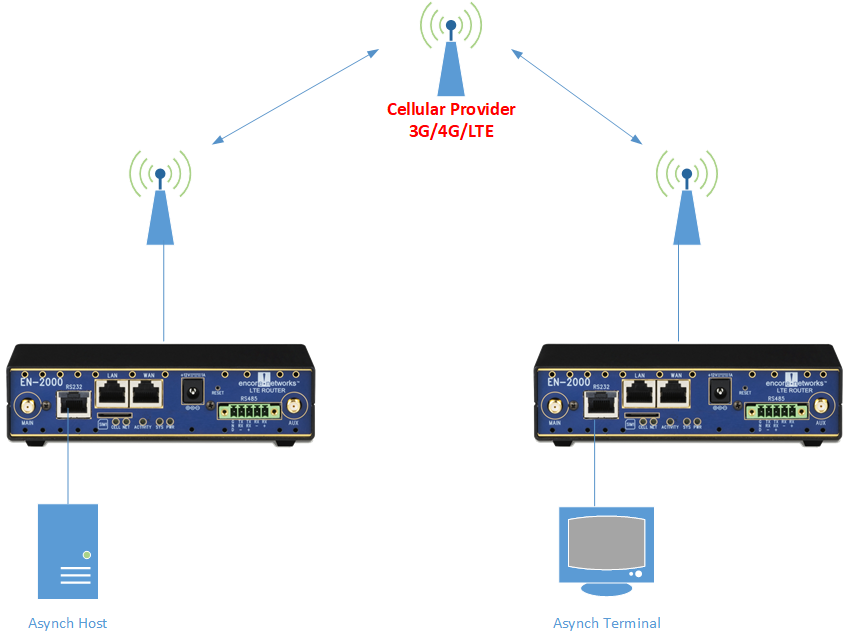

EN-2000 Industrial Router diagram






GENERAL FEATURES
  • Broadband Router
  • Secure VPN router
  • Modem/Cellular IP Pass Through/Bridge Operation
  • QoS enforcement to prioritize critical traffic
SECURITY APPLIANCE FEATURES
  • Stateful inspection layer 4 Firewall, NAT, NAT Port Forward
  • HTTPS-SSL
  • SSH (Secure Shell)
  • IPsec with AES 256 and 3DES 4 tunnels max
  • Dead Peer Detection plus NAT Traversal
  • Generic Router Encapsulation GRE (RFC 1701)\
  • Internet Key Exchange – IKE V1, V2
  • OpenVPN
IP TRANSPORT PROTOCOLS
  • Static routing
  • DHCP client/server
  • IP QoS and traffic prioritization
  • IP fragmentation/reassembly
  • IP routing over VPN; TCP and UDP
  • IPv6 Support
  • Virtual Redundant Routing Protocol (VRRP)
  • Asynchronous PPP
  • DMNR
  • PPPoE
CELLULAR
  • AT&T; LTE CAT 4 150/50 Mbits – Bands, 2, 4, 5, 17 – UMTS 850/1900
  • T-Mobile; LTE CAT 4 150/50 Mbits – Bands, 4, 12 – UMTS 850/1900
  • Verizon; LTE CAT 4 150/50 Mbits – Bands 4, 13
WIFI
  • Support for 2.4 and 5 GHz
  • Autoselect between 802.11a/b/g/n
  • WEP or WPA-PSK encryption
  • WiFi Access or Client
PHYSICAL FEATURES
  • LEDs for cell module, system status, network status, and power
  • LEDs for LAN/WAN and Cellular signal strength indication
  • One 10/100 Mbit/s Ethernet RJ-45 (WAN/LAN) – WAN is factory default
  • One 10/100 Mbit/s Ethernet RJ-45 (LAN)
  • One RS-232
  • One RS-485
  • Reset Switch
  • Two SMA antenna connections for embedded internal cellular radio
  • Two SMA antenna connections for detachable WiFi antennas
  • One Accessible SIM Slot
  • Power Input
  • Optional DIN Rail Clip
