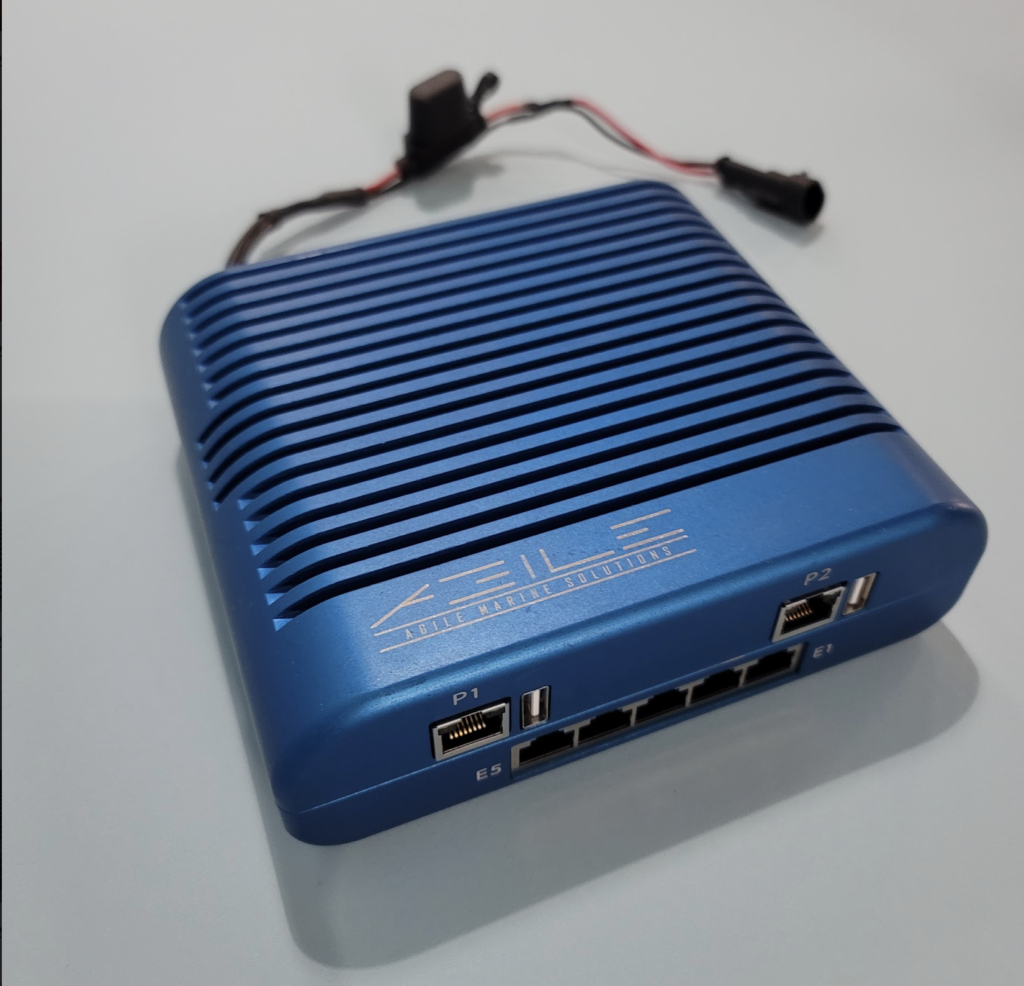

Marine Core

Cellular Voice, SMS, and Data for your Passengers and Crew - Offshore Communications

Marine CORE is a communications hub designed for yachts, ships, or any location that experiences moist conditions. Marine CORE resolves issues related to congested marina Wi-Fi, spotty cellular connections, or no connections at all. Marine CORE provides a secure multi-channel LTE internet connection when a vessel is a nearshore reducing satellite costs while providing a robust internet connection allowing services for passengers and crew like:

• Calling, texting, and chat
• Checking email
• Browsing the Internet
• Video Conferences
• Using apps
• Streaming video and music
• Posting on Social Media

Marine CORE integrates bonded multi-channel cellular LTE, Wi-Fi, GPS, and optional Land Mobile Radio extension capabilities. The marine CORE may be mounted in any vessel or location wherein moisture security is a concern. Designed for ease of use utilizing leading-edge technology, Marine CORE is ready to keep pace with your growing communications needs.

.

Key Features

• Intelligent software to scan for the best LTE connection available
• Smart routing for automatic switching between LTE and satellite services and back to LTE to reduce satellite usage
• 4 LTE channels / 4 SIM slots for each Marine CORE
• Automatic switching between carriers for expanded coverage
• 4 SIM cards are installed in the unit, and virtual download is possible via the CORE Control 2 service
• A large coverage area secured Wi-Fi for multiple devices
• GPS tracking embedded in the unit
• Interconnect points for mobile data units, surveillance equipment, and other devices
• Conformally coated boards and billet aluminum construction for durability
• Passively cooled for a wide range of temperatures
• DC power

SCALABILITY AND EASE OF OPERATION

Every Marine CORE has sophisticated software that manages cell tower handoffs as you travel, maximizing signal strength and automatically searching for the best throughput connection available. The use of bonded LTE aggregation allows Marine CORE users the ability to maintain session persistence even if one or more of the cell connections fail for any reason. The optional LMR extension functions in the background to detect loss of service to the trunked radio network and will send the transmission over the LTE connection. This requires no action by the operator.

FLEXIBILITY TODAY AND TOMORROW

Marine CORE has four LTE radios on board that covers most frequencies of service around the world, including all major North American carriers. This flexibility frees you from being limited to just one service provider when you purchase your LTE router and from having to replace your hardware when switching to a new cellular service provider.

AGILE ROUTING

Our devices automatically search for the best throughput connection available. If all LTE connections are lost, Marine CORE will automatically connect to the satellite. If the device finds an LTE connection it will reconnect to the first available LTE service, hands-free. The customer does not have to monitor AGILE routing.

Marine CORE systems are available in 2 versions:

Marine CORE – 4 LTE radios 150 Mbps (down) / 50 Mbps (up), 4 SIM slots, dual processor, conformally coated internal components mobile cellular gateway with 2.4 and 5.0 Wi-Fi, Edge Computing capability. Order code – FNG-104MC.

Marine CORE X2 – 4 LTE high throughput radios 1.2 Gbps (down) / 150 Mbps (up), 4 SIM slots, dual processor, conformally coated internal components mobile cellular gateway with 2.4 and 5.0 Wi-Fi, Edge Computing capability with the application processor, and solid-state drive storage. Order Code – FNG-104MCX2.

Data Sheet

Marine Core - Communications hub designed for yachts, ships, or any location that experiences moist conditions.

Have more questions about Agile Secure Communication products or need to purchase? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
