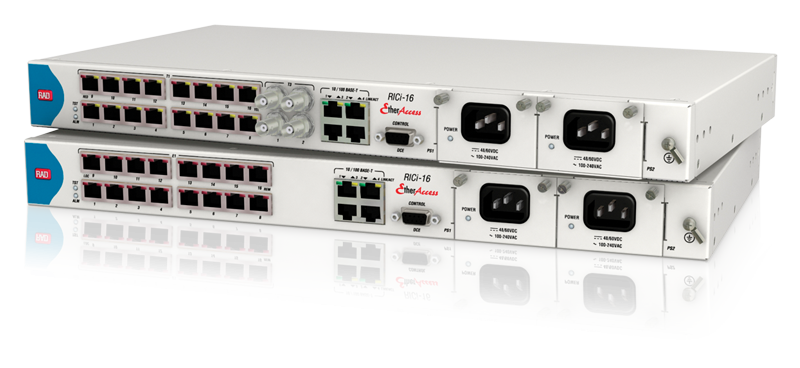

RICi-16 - Ethernet over Bonded PDH NTU




The RICi-16 connects Fast Ethernet LANs over multiple bonded PDH links, enabling service providers to extend high-capacity Ethernet-based services to remote locations.



RICi-16 - Ethernet over Bonded PDH NTU

MEF EPL and EVPL services over bonded PDH

The RICi-16 is also ideal for backhauling Ethernet traffic from IP Node B's and IP DSLAMs over copper-based or microwave PDH connections. Employing standard Ethernet over NG-PDH technology, the RICi-16 improves overall network availability by reducing latency and optimizing line utilization and throughput. The RICi-16 is MEF-certified for Ethernet Private Line and Ethernet Virtual Private Line services. It is equipped with advanced Ethernet SLA capabilities for handling multi-priority traffic, ensuring latency, jitter, and packet delivery performance on a per-flow basis. The RICi-16 features a “pay-as-you-grow” license model, allowing the addition of E1/T1 links according to evolving bandwidth requirements.





Key Features:



  • Ethernet traffic over 16 bonded E1 or T1 ports or two clear channel T3 ports, using Ethernet over NG-PDH protocols
  • MEF-9/MEF-14 certified, supporting EPL and EVPL services with the flexible mapping of user traffic into Ethernet flows
  • Enhanced QoS mechanism and flow-based provisioning (service multiplexing) with advanced traffic management
  • Monitoring and diagnostic tools for quick fault isolation on TDM and Ethernet ports
  • Complete Ethernet OAM solution based on IEEE 802.3-2005 (formerly 802.3ah), IEEE 802.1ag, and ITU-T Y.1731



Solutions:

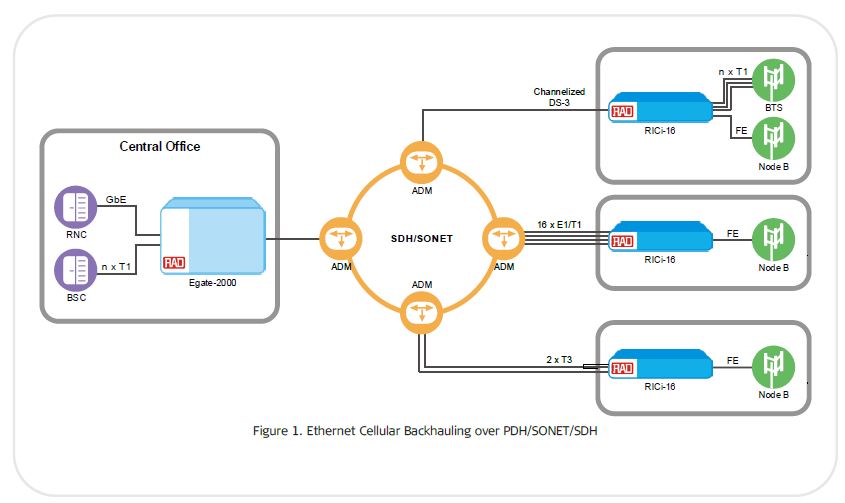

RICi-16 - RAD Application

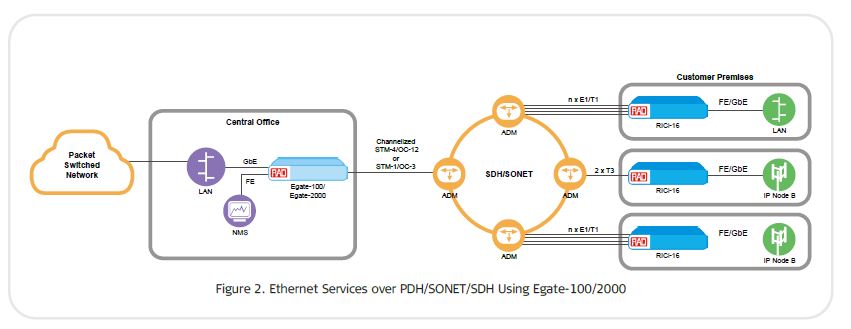

RICi-16 - RAD Application

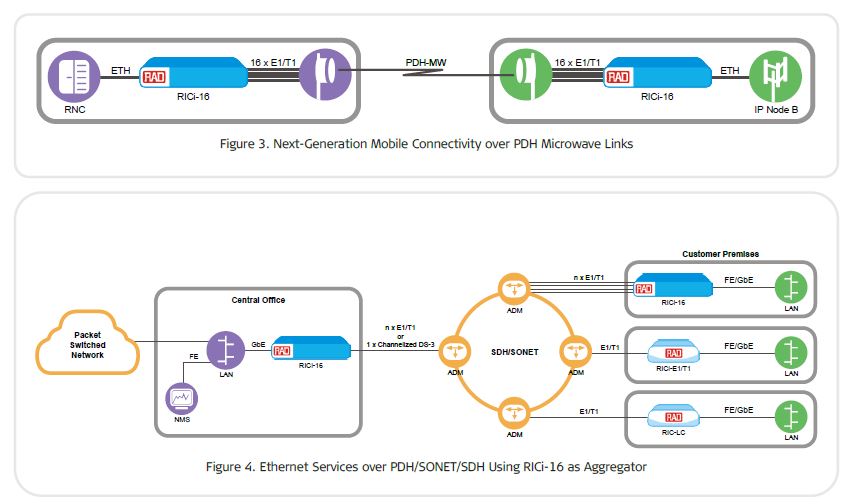

RICi-16 - RAD Application
