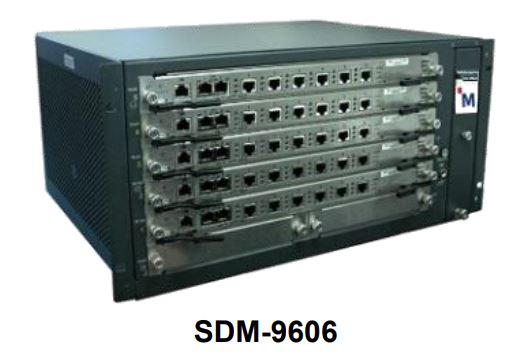

NetPerformer - SDM-9606

Satellite Router and Legacy Interface Converter




Satellite and WAN Swiss Army KnifeNetperformer SDM-9606 - Satellite Router and Legacy Interface Converter - Pulse Supply

The SDM-9606 NetPerformer is a high-performance Data and Voice Router. The SDM 9606 Integrated Access Router maximizes network performance and provides superior convergence capabilities to ensure efficient and secure transport of multiple communications services. With a range of interfaces to connect automation and metering equipment, NetPerformer enables deployment over copper, fiber, microwave, and satellite access infrastructure. The SDM-9606 is a modular slot chassis version of the SDM-9230 with 5 Slots for the SDM-9606 Blade. The SDM-9606 blade is equivalent to the SDM-9230 equipped with 6 x E1/T1 Ports.



Product Information



MULTI-PROTOCOL SUPPORT

NetPerformer’s leading compression technology, as well as its multiplexing and prioritization capabilities, make it the product of choice for converged voice & data applications over satellite networks. Its ability to support legacy protocols and IP data makes it ideal for Government, Military, Oil & Gas, Industrial, and Multiservice VSAT applications.

ENHANCED SATELLITE ACCESS CAPABILITIES

NetPerformer can be deployed with SCPC, TDMA, and IP broadband satellite technologies along with SkyPerformer®, our satellite optimization solution. Carriers can operate a hybrid satellite/terrestrial topology over a single platform, reducing costs and minimizing complexity.

AWARD-WINNING COMPRESSION TECHNOLOGY

Memotec’s PowerCell® provides high-compression voice & data transport over any WAN infrastructure. PowerCell QoS is combined with IP Precedence TOS bit and 802.1p/q support to provide end-to-end QoS. Users can define up to eight classes of service with 16 different levels of prioritization to ensure that mission-critical applications always receive sufficient bandwidth.

Netperformer SDM-9606 - Satellite Router and Legacy Interface Converter - Pulse Supply

Key Features



  • Support for T1, E1, J1, and Serial Network Interfaces including RS-232, RS-530, V.35, and X.21
  • Support for Microwave and Satellite Networks in Point to Point and Multi-Point Topologies with SkyPerformer® - SCPC, and TDMA
  • Support for a low form factor - 2U High
  • Support for Digital Voice Interfaces - T1, E1, J1, PRI and BRI
  • Low power consumption - Less than 70 watts
  • AC or DC Power Supplies
  • Supports IP Routing and Bridging - IP RIP V1/V2 or Static, OSPF, NAT, IP Multicast IGMP V1/V2 PIM-DM, BootP/DHCP relay, DHCP client, IPX RIP, and SAP, LLC2, 802.1p/q prioritization and VLAN, 802.1D Spanning Tree Protocol (STP), MAC Layer
  • Supports FAX - FAX Relay: Group 3 FAX over PowerCell. Super G3 configurable to pass through or fallback to G3. Group 4 FAX and another non-voice bearer ISDN channel at 64K
  • Supports Modem Relay - V.32bis demodulation up to 14.4Kbps, STU-III secure phones over PowerCell, modem pass-through (G.711) for other modems
  • Supports Voice traffic routing with alternates destinations and digits manipulation using local mapping tables, locally switched TDM calls (hairpin)\
  • Supports Voice Signaling and Conversion - ISDN and QSIG T1/E1 PRI and BRI signaling: EuroISDN/ETSI, National, and Japan, T1 signaling: robbed bit signaling, CCS transparent, SS7 transport with idle filtering and spoofing, E1 signaling: CAS, CCS transparent, SS7 transport with idle filtering, Digital CAS Signaling types: Immediate, Wink, FXO, FXS, FXO ground, FXS ground, E1/R2 (compelled, semi-compelled, DTMF), PLAR, custom (9230 only), Mu-law or A-law coding
  • Compliant - EMC - Emission FCC Part 15, Class B EN 55022:1998 + A1 + A2, AS/NZS CISPR22, EMC - Immunity EN 55024:1998 + A1 + A2, Safety IEC 60950-1, EN 60950-1, UL 60950-1, CSA C22-2 N°60950-1, AS/NZS 60950, Telecom - Digital FCC Part 68 + TIA-968-A, IC CS-03 Issue 9 - Part 2 and Part 6, AS/ACIF S016, AS/ACIF S038, TBR 1 + TBR 2, TBR 3, TBR4, TBR 12 + TBR 13, Telecom - Analog FCC Part 68 + TIA-968-A, IC CS- 03 Issue 8 - Part 1, AS/ACIF S002, TBR 15 + TBR 17, TBR 21
  • Lower Power Cost - Up to 80% less power consumption compared to older technology



Applications

  • Satellite and VSAT Applications
  • Utilities
  • Carriers and Service Providers
  • Converging legacy and IP networks
  • Mining, Oil and Gas Applications
  • Signaling Conversion
  • Military Applications
  • Reduce power consumption with the replacement of existing power-hungry equipment



Specifications



         NetPerformer SDM-9606
 Capacity    Telephony   Up to 120 T1/E1 CAS/PRI digital channels per SDM9606 blade, up to 600 per SDM-9600 chassis
     Data   Not Applicable

 Link Port    Speed   -With data compression disabled: 8 Mbps per blade
-With data compression enabled: Up to 4 Mbps
-*Maximum speed is protocol dependent


 Physical    System   -SDM-9600 Chassis
-Hot-swappable fan tray with independent air filter
-Dual -48 VDC feed
-300 W maximum SDM-9606 blade
-SDM-9606 blade occupying one front slot
-Hot-swappable
-2X 10/100BaseT Ethernet (RJ-45 connectors)
-1 DSP connector per blade
-One console port RJ-45 female connector, autosensing DTE/DCE, maximum speed 115.2 kbps

     Chassis   19" rackmount modular SDM-9600 chassis - 5 slots for SDM-9606 blades
     Dimensions    8.72” (5U) x 19” x 16.3” (221 x 482 x 414 mm)
     Weight   33 lbs (15 kg)

 Environmental    Operating Temperature   0° to 50°C / 32° to 113°F
     Storage Temperature   -20º to 65ºC / -4° to 149°F
     Relative Humidity   0% to 95%, noncondensing

 Software Option       SkyPerformer, TCP/IP acceleration, SIP (Eurocae WG67 ED-136/137), IP Header Compression, and Link Delay Compensation (LDC)

 Optional Interface Modules    Analog Telephony   Not Applicable
     Digital   Six T1/E1 ports per SDM9606 blade (software configurable, RJ-48 connectors, adapter cable required for BNC E1-75)
     Data   Not Applicable
     DSP   DSP modules supporting up to 120 voice channels

 Network       -Network topology: Mesh, hierarchical, star, point-to-point, satellite point-to-point/multipoint
-Automatic node discovery and rerouting with least cost metric routing
-Automatic load balancing, bandwidth on demand (over leased line), dial back-up, time-of-day connect
-QoS: 8 classes of service, 16 priority weights, association to 802.1p and DiffServ TOS bits


 Data        -Sync: PPP, BDLC, HDLC, SDLC, X.25, X.25 over Frame Relay annex F/G
-Legacy Sync: COP, BSC, VIP, IBM/RJE, Uniscope, Poll/Select, Siemens Nixdorf, JCA, Zengin
-Frame Relay: RFC-1490, UNI-DTE, UNI-DCE
-Asynchronous: ENQ/ACK, XON/XOFF, transparent


Telephony        -Voice compression algorithms (5 channels per DSP): ACELP-CN (8 K/6 K), LDCD (16 K), G.711, G.723.1, G.726, and G.729 (available only with the SIP software option)
-FAX Relay: Group 3 FAX, Super G3 configurable to pass through or fallback to G3, Group 4 FAX and other non-voice bearers ISDN channel at 64 K
-Modem Relay: V.32bis demodulation up to 14.4kbps, STU-III secure phone, modem pass-through (G.711) for other modems
-Network signaling: Transparent point-to-point and any-to-any switching, including end-to-end QSIG/ISDN
-Analog telephony channels:
-FXS - loop and ground start, forward disconnect, caller ID, and local billing tone generation
-FXO - loop start, forward disconnect, and caller ID detection
-E&M - immediate and wink start, custom
-Pulse, DTMF, and MF tone dialing
-Voice traffic routing with alternates destinations and digits manipulation using local mapping tables, locally switched TDM calls (hairpin)


 LAN       -Two IP address per Ethernet port
-Ethernet interfaces: Ethernet II and IEEE 802.2, 802.3, SNAP
-Standards: IP RIP V1/V2 or Static, OSPF, NAT, IP Multicast IGMP V1/V2 PIM-DM, BootP/DHCP relay, DHCP client, IPX RIP, and SAP, LLC2, 802.1p/q prioritization and VLAN, 802.1D Spanning Tree Protocol (STP), MAC Layer
-Filter criteria: Based on protocol, address (source, destination, or SAP), TOS bit/diffServ, or custom filtering


 Digital Telephony       -ISDN and QSIG T1/E1 PRI and BRI signaling: Euro ISDN/ETSI, National, and Japan
-T1 signaling: robbed bit signaling, CCS transparent, SS7 transport with idle filtering and spoofing
-E1 signaling: CAS, CCS transparent, SS7 transport with idle filtering
-Digital CAS Signaling types: Immediate, Wink, FXO, FXS, FXO ground, FXS ground, E1/R2 (compelled, semi-compelled, DTMF), PLAR, custom (9230 only)
-Mu-law or A-law coding


 Compliance and Agency Approval       Complies with or has obtained regulatory agency approval at least the following standards:
-EMC – Emission: (Class B) FCC Part 15, EN 55022:2010 (UAC version only), AS/NZS CISPR22
-EMC – Immunity: EN 55024:2010 (UAC version only)
-Safety: IEC 60950-1:2005 + A1 (UAC version only), EN 60950-1:2006 + A11 + A1 + A12 (UAC version only), UL 60950-1, CSA C22-2 N°60950-1, AS/NZS 60950-1
-SDM-9220/9230: Telecom – Digital: FCC Part 68 + TIA-968-A, IC CS-03 Issue 9 - Part 2 and Part 6, AS/ACIF S016, AS/ACIF S038, TBR 1 + TBR 2, TBR 3, TBR4, TBR 12 + TBR 13
-SDM-9220/9230: Telecom – Analog: FCC Part 68 + TIA-968-A, IC CS- 03 Issue 9 - Part 1, AS/ACIF S002, TBR 15 + TBR 17, TBR 21
-SDM-8400: TBR 1 + TBR 2


 Network Management        SNMP management via IPSwitch WUP (WhatsUp Professional) for Windows
-Menu-driven async console port (VT-100) via RJ-45 connector, auto-sensing DTE/DCE, speed up to 115,200 bps
-Remote Telnet access to the command port
-Traps, traces, and extended statistics
-Web server interface for local or remote web browser access
