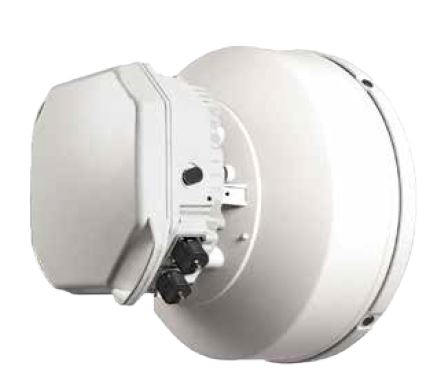

ALFOplus - 1 GHz Microwave IP Radio - 7-42Ghz




ALFOplus is a Full-Outdoor, full IP Next Generation Microwave Radio. Its zero-footprint solution allows for fast rollouts of LTE full IP backhaul networks. Ideal for a fast and flexible evolution towards full IP networks, it offers best in class performance and lowest power consumption for a green but performing network ALFOplus combines compactness, best in class performance and lowest power consumption in a single efficient and cost-effective full-outdoor device. It offers up to 1Gbps transport capacity also liaising over higher modulation schemes of 1024 QAM. ALFOplus is optimized for TCP/IP transport compliant to LTE traffic needs including packet synchronization techniques.



     ALFOplus - 1 GHz Microwave IP Radio - 7-42Ghz



Key Features:

  • 4 QAM to 1024 QAM modulation
  • Hitless Adaptive Coded Modulation
  • MultiLayer Header Compression
  • 1 Gbits throughput radio
  • Best in Class for SystemGain
  • FCC/ETSI Channels supported
  • Advanced Pure IP engine
  • CISCO Microwave Adaptive
  • Bandwidth feature interworking
  • Synchronous Ethernet support
  • IEEE 1588 v2 support
  • Extended buffer for TCP/IP efficiency in LTE networks
  • Optical or Electrical port options
  • Lowest power consumption
  • Integrated antennas up to 1.8m (6ft)
  • Unified Network Management System - NMS5
  • Network Management System: NMS5
  • SDN Microwave Domain Controller: SM-DC



Layer 2 Functionality:

  • MEF-9 and MEF-14 compliant
  • 8 queues with the flexible scheduler (Strict WFQ and mixed)
  • Flexible QoS definition based on VLAN, IPv4, IPv6, MPLS exp bits
  • Per queue WRED congestion avoidance
  • Flow-Based Ingress Policing CIR & EIR definition)
  • Flow Control IEEE 802.3x
  • RMON Statistic management
  • VLAN/VLAN STACKING (IEEE 802.1q with QinQ)
  • Link Aggregation IEEE 802.3ad
  • ETH OAM IEEE 802.1ag/ITU-T Y 1731
  • Jumbo Frames up to 10 Kbytes



Typical Applications:

  • Any-G Mobile Backhaul for Access and aggregation
  • ISP High Capacity LAN to LAN connections
  • Last Mile fiber extension for business customers
  • Emergency wireless links
  • A complimentary solution to fiber deploy
  • Zero footprint applications



Have more questions about SIAE Millimeter-wave products or solutions? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
