TL Compact - Trunk Link IP & Hybrid Microwave System - 4Ghz to 13Ghz

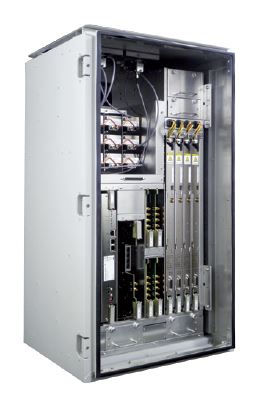

TL Compact is the ideal solution for a wide range of applications in access and backbone networks where placement and installation footprint of equipment is paramount. The TL Compact provides up to 4 RF carriers per cabinet (3+1/4+0) for IP and Hybrid transmission.  IP55 weather hardened cabinet allows for a full outdoor installation of this multi-carrier solution by locating the radio equipment closer to the antenna. TL Compact, with the reduction of the waveguide losses and ability to transmit over a greater distance, results in a better TCO solution.

Multiple Frequency bands and High Capacity

TL Compact is available in all frequency bands from 4 to 13 GHz (ITU-R, FCC, NTIA) with up to 4 STM-1/OC-3 or 1 Gbits capacity, in N+1 or N+0 & M+1 or M+0 configurations. In addition, for IP applications an L2 switch is embedded in the equipment.

Key Features:

• N+1 or N+0 mixed configuration ACCP/ACAP/CCDP with SD (space diversity) & TSD (transmit space diversity with up to 16 channels)  support in a single rack
• Full set of countermeasures against fading in order to maximize system performance
• 2xE1 wayside traffic per each SDH channels
• 1xT1 per each Transceivers
• Fixed or Adaptive Code ModulationTechnique 4/16/32/64/128/256/512 QAM
• STM-1 and Gigabit Ethernet (GE) electrical or optical interfaces are available with any mix of combinations
• Easy on-site test and management without measuring instruments:
  -automatic IF-IF response adjustment
  -automatic SD DADE adjustment
  -automatic baseband DADE adjustment

Layer 2 Functionality:

• Native IP radio
• VLAN Management
• Spanning tree (STP/RSTP)
• Ethernet QoS (IEEE 802. /ToS/ DSCP)
• Link aggregation (L1)
• Traffic Shaping

Typical Applications:

• 2G/3G/4G Cellular Network backhauling infrastructure
• backup transmission medium to fiber-optic links
• High capacity IP Radio Rings
• Wireless backbone for all regional and national networks

TRMD Main signal transmission unit

A high integration level to packaging in the TRMD; the Transmitter (TX), Receiver (RX), Mo-demodulator and baseband functions. The one rack chassis can host up to 4 bidirectional RF carriers. The minimization of frequency-dependent spare parts has been achieved through the use of wide-band units. Easy operation and maintenance: no adjustment or provisional settings are required.
