9155 UPS
Eaton Powerware 9155 UPS
Eaton’s 9155 maximum power, minimum footprint UPS
Agility, scalability and space efficiency – with greater standard runtime
High power density means more power protection in a small footprint. Eaton’s 9155 single-phase uninterruptible power supply (UPS) is a proven market winner in its class. With scalable battery runtime options, the 9155 packs maximum battery runtime into a very small footprint. Customize your UPS with power distribution and an integral maintenance bypass switch for complete power protection.
- Split-phase, double-conversion online operation offers highest reliability
- Small footprint saves on valuable floor space
- Monitor and manage UPS and other devices via a web-based interface

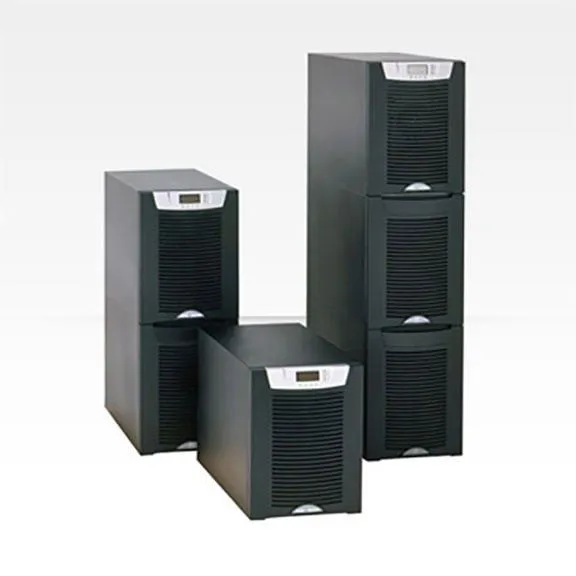

- Available in 8 kVA, 10 kVA, 12 kVA, and 15 kVA units
Features of the Eaton 9155 UPS
- True double-conversion online operation protects connected equipment from all nine of the most common power problems

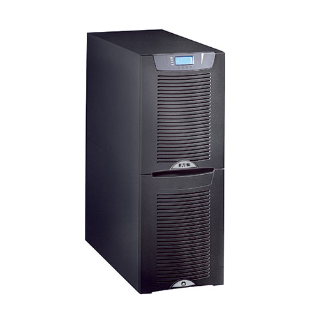

- Compact tower design delivers maximum power density— entire unit is only 12 inches wide and 33 inches deep, including batteries
- Provides 5,500 watts per square foot with .9 output power factor — protecting more equipment for every utility dollar spent, and leaving more room for expansion in the data center
- Easily add redundancy or increase system capacity with patented Eaton Hot Sync® paralleling technology
- Manage your power devices in your physical or virtual environment with Eaton’s Power Xpert® software and Intelligent Power™ Software Suite
- Advanced Battery Monitoring (ABM) technology increases battery life

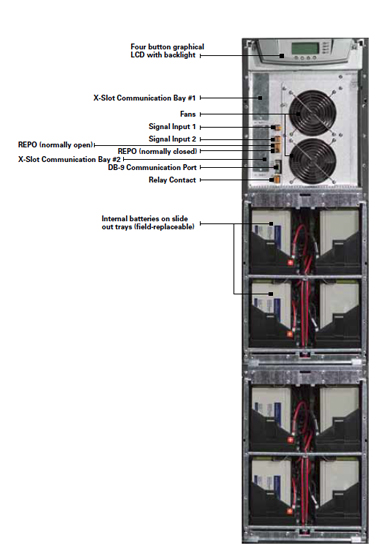

- Enhanced communications allow network connectivity and remote management:
– Two X-Slot communication bays
– Relay output contacts
– Two programmable signal inputs
– Remote emergency power-off (REPO)
Product support
Eaton provides free product support via phone, email or chat. If you have a question or need to find a replacement battery, Eaton can help.
Product Specifications
DATA SHEETS
Data Sheet:
Have more questions about Power, Surge, or Back Up solutions? Need to Purchase Eaton Power Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
