SmartOnline UPS

Eaton Tripp Lite SmartOnline UPS

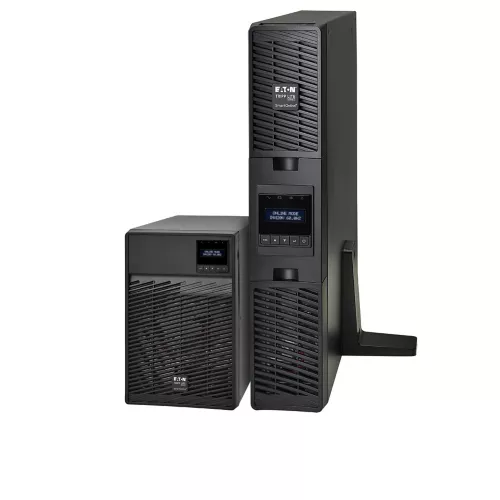

Eaton’s Tripp Lite series SmartOnline UPS,
2U rack/tower or tower, 700–3000 VA

Enhanced power protection for critical network equipment
The Tripp Lite series SmartOnline UPS has a refreshed look and enhanced features. Network capability, long battery
runtimes and an easy-to-use LCD control panel make these rack/tower and tower double-conversion UPS models
an outstanding value for minimizing downtime in network closets, server rooms and edge computing sites.

Power and protect IT equipment
Enhanced power for larger equipment loads
A unity power factor (1.0) enables the UPS to deliver the most watts possible at each power rating, allowing support of more equipment like servers, switches, VoIP phone systems and professional audio/video computer systems.

Effective power protection
The UPS provides pure sine wave AC output to connected equipment.

• Automatic voltage regulation (AVR) corrects abnormal voltages without switching to battery, keeping the UPS fully charged.
• Automatic restart when AC input power is restored after an outage reduces the need for onsite visits.

Reliable battery backup to prevent downtime
In the event of a power outage, switchover from line to battery power happens within milliseconds.

• User-replaceable, hot-swappable VRLA internal batteries outlast brief outages and permit graceful system shutdown during longer blackouts.
• Models with extendable runtime support up to four external battery packs (sold separately).

Easily monitor and manage UPS operation

User-friendly local monitoring and control

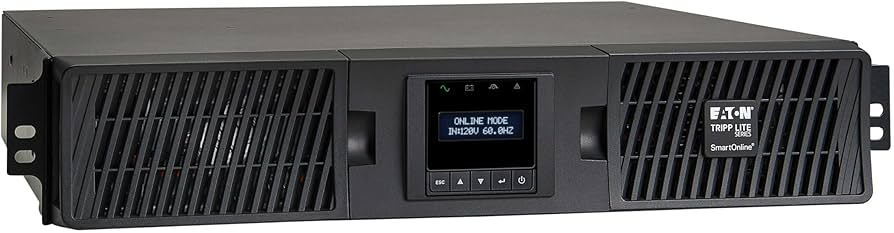

Status LEDs and a menu-driven LCD make it easier to identify alarms and faults. The control panel rotates to accommodate horizontal or vertical UPS installation.

Advanced remote monitoring
An optional network card (WEBCARDLXE) provides SNMP-based UPS management. Free downloadable PowerAlert software supports remote monitoring and control.

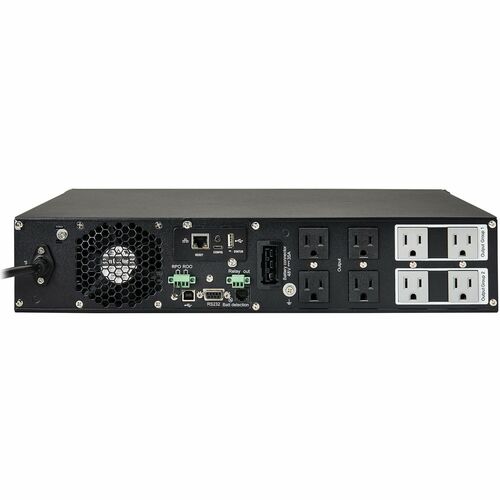

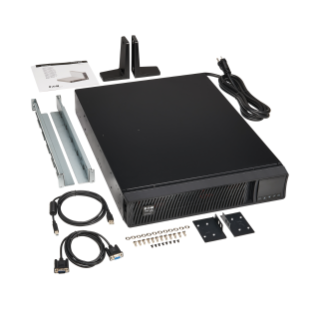

• USB and RS-232 serial ports provide additional communication options. (Cables are included.)
• RPO/ROO port allows remote shutdown or restart of connected equipment.
• Programmable outlet banks can be controlled independently.

Product support
Eaton provides free product support via phone, email or chat. If you have a question or need to find a replacement battery, Eaton can help.

Product Specifications

DATA SHEETS

Data Sheet:

Eaton SmartOnline UPS Brochure

Have more questions about Power, Surge, or Back Up solutions? Need to Purchase Eaton Power Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
