Connect IT 16/48

Live Search

Tel: 410-583-1701     Email: Sales & Technical

Digi Connect IT 16/48

Console Server

Out of Band Cellular Gateway to Access a Servers Console Port

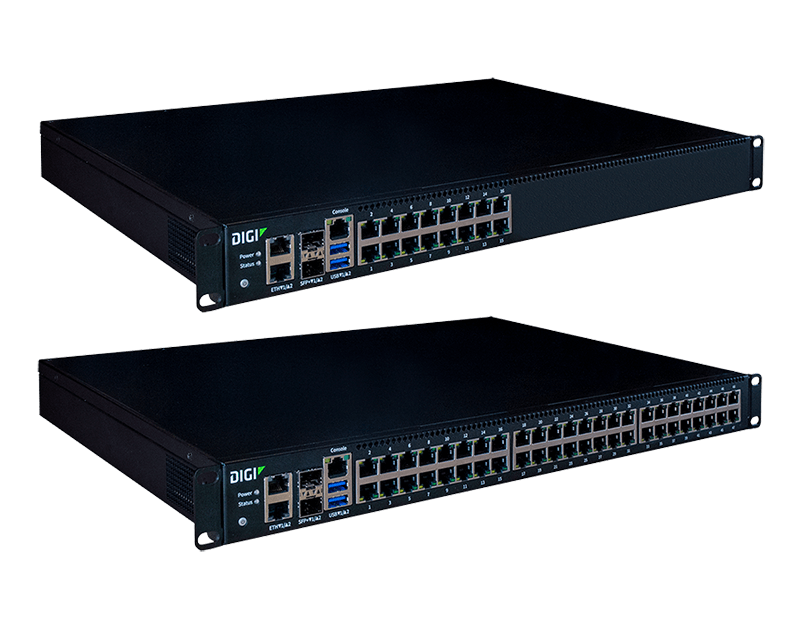

Digi Connect IT 16/48 Console Server - Pulse Supply

Secure, affordable, managed out-of-band access for isolated remote IT devices and server equipment.

Reduce downtime, and simplify cabling, deployment, maintenance, and change management. The highly redundant design of Connect® IT 16/48 with dual Ethernet, dual SFP+, and dual power (field replaceable) provide a robust and resilient solution for demanding IT infrastructure management applications. Flexible power supply kits offer the ability to deploy the product into hot or cold aisles. Software selectable reversing serial cable pinout allows straight-through connectivity to most IT infrastructure devices.

Digi Remote Manager® (Digi RM) provides a single pane of glass interface to all devices across the enterprise and around the world, enabling the management of complex, hyper-scale, and edge computing equipment.

Digi CORE™ LTE modems offer dual SIM support across the family of Digi enterprise routers and now Connect IT 16/48 products. These products are managed globally using Digi RM and enable network backup for mission-critical data delivery for remote locations.

Finance, healthcare, global commerce, and managed service companies can use the Connect IT 16/48 to help deliver the highest levels of reliability in support of their critical businesses.

.

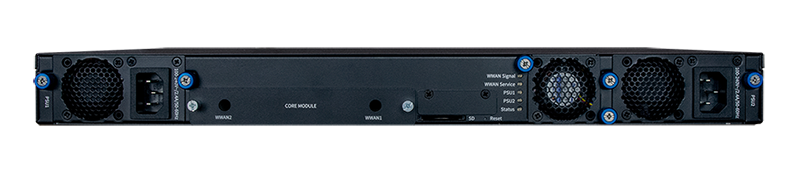

Digi Connect IT 16/48 Console Server - cellular - 4g - Pulse Supply







Key Features



  • Digi CORE™ LTE modems support Cat-M, Cat 1, Cat 4, and Cat 6 in multiple regions
  • Power supply kit provides dual replaceable redundant internal power
  • Digi Connect IT 16
    (16) RJ-45 RS-232 (standard/reversed mode selectable)
  • Digi Connect IT 48
    (48) RJ-45 RS-232 (standard/reversed mode selectable)





How it Works



Digi Connect IT 16/48 Console Server - cellular - Diagram





Digi Connect IT 16/48 Applications

  • Retail stores
  • Branch offices
  • Kiosks
  • Or other remote sites





Product Specifications



SPECIFICATIONS DIGI CONNECT® IT 16 DIGI CONNECT® IT 48
CELLULAR
CORE MODULE SUPPORT (1) Digi CORE™ module compliant socket (see accessories list for recommended modules)
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based); SNMP
LOCAL MANAGEMENT WebUI (HTTPS); CLI (SSH, serial console, direct SSH to serial ports)
MANAGEMENT/ TROUBLESHOOTING TOOLS FTP, SFTP, SCP; Protocol analyzer with PCAP for Wireshark; event logging with Syslog and SNMP; NTP/SNTP
MEMORY 2GB RAM, 8GB flash
SECURITY Implements Digi TrustFence® and supports Digi Remote Manager (DRM)
CONNECTIONS
SFP+ (2) 10 Gb capable SFP+ sockets
ETHERNET (2) 10/100/1000 Ethernet
SERIAL (16) RS-232 serial RJ-45 (support standard or reversed mode) (48) RS-232 serial RJ-45 (support standard or reversed mode)
CONSOLE (1) RS-232 serial RJ-45 console port (1) RS-232 serial RJ-45 console port
USB (2) USB 3.1 Gen 1 (Type A)
SD (1) SD/SDHC/SDXC socket
PHYSICAL
DIMENSIONS (L x W x H) 444 mm x 300 mm x 44 mm (17.48 in x 11.81 in x 1.73 in)
WEIGHT 5.10 kg (11.25 lbs) with power supply kit installed 5.28 kg (11.65 lbs) with power supply kit installed
STATUS LEDS Front: device power, status; (2) Ethernet (link/active) console (Tx/Rx); 16/48 (Tx/Rx); Back: (2) PSU, status, WWAN signal/service
POWER REQUIREMENTS
POWER INPUT Redundant 100-240 V ~ 50-60 Hz 2.4 A max for each power supply
POWER CONSUMPTION 30.5 W 39 W
POWER SUPPLY KITS Port side intake or port side exhaust redundant replaceable power supplies (device requires one power supply kit, see accessories)
ENVIRONMENTAL
OPERATING TEMPERATURE 0° C to 50° C (32° F to 122° F)
STORAGE TEMPERATURE 0° C to 70° C (32° F to 158° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
SAFETY UL 60950, CSA 22.2 No. 60950, EN60950, EN62368
EMISSIONS/ IMMUNITY CE, FCC Part 15 Class A, IC, AS/NZS CISPR 22, EN55024, EN55032
WARRANTY
PRODUCT WARRANTY* 5-year





ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTP, HTTPS, FTP, SFTP, SSL, SNMP v3, SSH and CLI for web management; remote management via Digi Remote Manager; SMS management, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; Dynamic DNS client compatible with BIND9/No-IP/DynDNS
SECURITY/VPN IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3, OpenVPN client and server; Cryptology: SHA-1, MD5, SHA2-256, SHA2-384, SHA2-512, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); Authentication: RADIUS, TACACS+, TOTP, HOTP; X-509 certificates; MAC address filtering; VLAN support
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; Multicast routing; Network protocols: DHCP, PPPoE, Ethernet, cellular; Routing protocols: RIP (v1, v2), OSPF, BGP, Babel, IS-IS; RSTP (Rapid Spanning Tree Protocol); IP failover: VRRP, Ping, DNS, custom; Automatic failover/failback to second GSM network/standby APN
OTHER PROTOCOLS DHCP; Dynamic DNS client compatible with BIND9/No-IP/DynDNS; QoS via TOS/DSCP/WRED






DATASHEETS


Data Sheet:  Digi Connect IT 16/48
