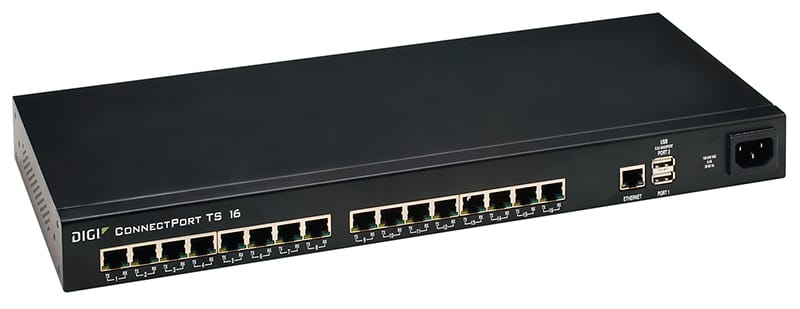

ConnectPort TS 8/16 Terminal Server

Terminal Servers

Terminal Servers with Dual IPv4/IPv6 stack



Digi ConnectPort TS - Terminal Server - Pulse Supply

The Digi ConnecPort is a Next-generation Terminal Servers with a Dual IPv4/IPv6 stack.

ConnectPort® TS 8/16 serial servers provide secure, easy EIA 232 or EIA 232/422/485 serial-to-Ethernet integration of virtually any device into wired Ethernet networks. They are ideal for use in a wide variety of demanding applications such as automation, robotics control, centralized device monitoring and management, data acquisition, and point-of-sale applications requiring COM/TTY ports, serial tunneling, or TCP/UDP functionality.

Enhanced access control, management, and configuration capabilities support key security requirements for critical infrastructure and distributed systems. The built-in Python environment enables application development and customization at the device level, including full device connection control, data manipulation, and event-based actions.

Efficient configuration and management of the ConnectPort TS 8/16 are available through an integrated and secure web user interface as well as a powerful Command Line Interface option. SNMPv2 support provides simple device integration into centralized network management systems.

The ConnectPort TS implements Digi’s patented RealPort® COM port redirection software which provides local serial port functionality. The ConnectPort supports both host-initiated and device-initiated RealPort connection modes. SSH, SSL, TCP, and UDP connectivity are also supported to each port.

Management of the device is possible through Digi Remote Manager®, web services, CLI, and SNMP connectivity with mass configuration and customization tools available to pre-configure devices prior to deployment. The ConnectPort TS also supports USB connectivity for data logging or configuration loading.

.

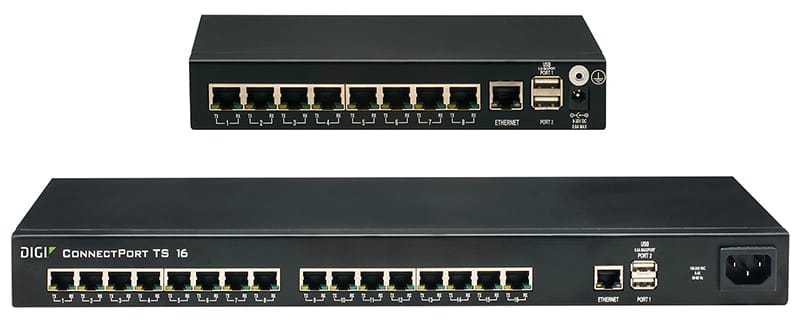

Digi ConnectPort TS Family - Terminal Server - Pulse Supply







Key Features



  • Low latency connectivity for sensitive applications
  • 8 or 16 RS-232 or software selectable RS-232/422/485 serial ports
  • Dual IPv4/IPv6 stack
  • Easy-to-use Python development environment for custom applications
  • Tx/Rx LEDs per serial port
  • Patented RealPort® technology for COM/TTY port control/ management
  • Web proxy support
  • Per user access controls
  • Digi Remote Manager® support
  • SSL/TLS and SSHv2 for added security





How it Works

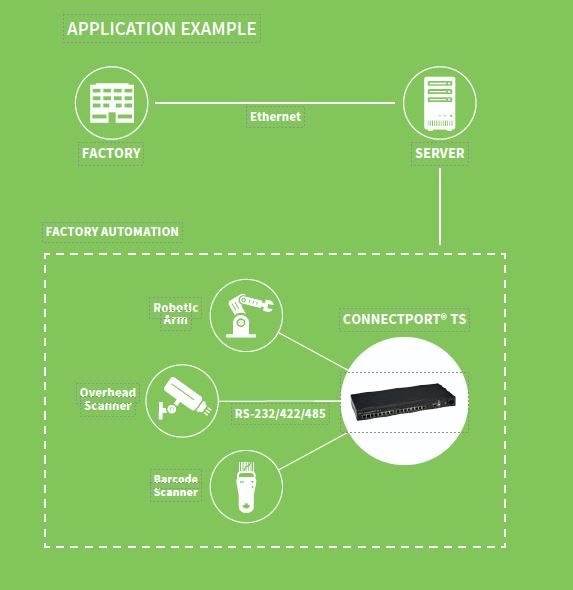

ConnectPort TS 8/16 Terminal Server - Diagram





ConnectPort - TS - Terminal Server Applications

  • Automation
  • Robotics control
  • Centralized device monitoring and management\
  • Data acquisition
  • Point-of-sale applications





Product Specifications




Platform ConnectPort TS 8
ConnectPort TS 8 MEI
ConnectPort TS 16
ConnectPort TS 16 MEI
Performance
Management HTTP/HTTPS, SSH or Telnet; optional secure enterprise management via Digi Remote Manager®
Protocols IPv4/IPv6, UDP/TCP, DHCP, Extended Telnet RFC 2217, Telnet, Reverse Telnet, SSH direct to serial port, Modbus/TCP to Modbus protocol conversion support
Software Patented RealPort® COM port redirector (server initiated or device initiated); RFC 2217; Python support
Operating Systems Microsoft Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019; and Linux®
Status LEDs Serial: Tx/Rx; Ethernet: Link/Activity, Diagnostic
Dimensions (L x W x H) 10.5 cm x 19.6 cm x 3.3 cm (4.15 in x 7.7 in x 1.3 in) 43.18 cm x 17.65 cm x 4.1 cm (17 in x 6.95 in x 1.62 in)  (19" rack mountable, includes kit)
Weight 1.86 kg (4.1 lb) 2.3 kg (5 lb)
Security HTTPS, SSL, SSL/TLS, SSHv2, FIPS 197, SNMPv2, PPP
Interfaces
Serial
Ports 8 RS-232 serial ports
MEI version: 8 RS-232/422/485 serial ports (software selectable)
16 RS-232 serial ports
MEI version: 16 RS-232/422/485 serial ports (software selectable)
Throughput Up to 230 kbps per port
Signal Support TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI
Ethernet
Physical Layer 10/100 Base-T
Data Rate 10/100 Mbps
Mode Full or half-duplex
USB
Ports 2 ports @ .5 A max per port
Performance
Power Input 9-30 VDC @.8 A max AC: 100-240 VAC, 50/60 Hz, 0.4 A
DC: 36-72 VDC.700 A (MAX)
Power Supply 12 VDC power supply for 0° C to 60° C (32° F to 140° F) with locking barrel connector included; Extended temperature power supply available AC: Internal power supply, 100 to 250 VAC, 50-60 Hz
DC: Internal power supply, 32-72 VDC
Power Consumption Typical: 6W (500 mA @ 12 VDC) Max: 12W (1A @ 12 VDC) Typical: 8W; Max: 15W
Product Surge Protection (ESD) 4 kV burst (EFT) per EN61000-4-4; 2 kV surge transient per EN61000-4-5 1 kV burst (EFT) per EN61000-4-4; 2 kV surge transient per EN61000-4-5
Environmental
Operating Temperature 0° C to 60° C (32° F to 140° F) 0° C to 55° C (32° F to 131° F)
Storage Temperature -35° C to 85° C (-31° F to 185° F)
Relative Humidity 5 to 95% (non-condensing)
Ethernet Isolation 1500VAC min per IEEE 802.3/ABSU X 3.263
Serial Port Protection (ESD) 15 Kv human body model
Approvals
Safety UL60950-1, EN/IEC 60950-1, CAN/CSA C22.2 No. 60950, CUL60950-1-03
Emissions/Immunity FCC Part 15 Subpart B Class A, EN55024, EN55022, AS/NZS CISPR 22, EN61000-3-2 ,3






DATASHEETS


Data Sheet:  ConnectPort TS 8/16 Terminal Server
