Digi One SP

Compact Serial-to-Ethernet Connectivity

Switch Selectable Expansion for Asynchronous Connectivity in a Compact Case

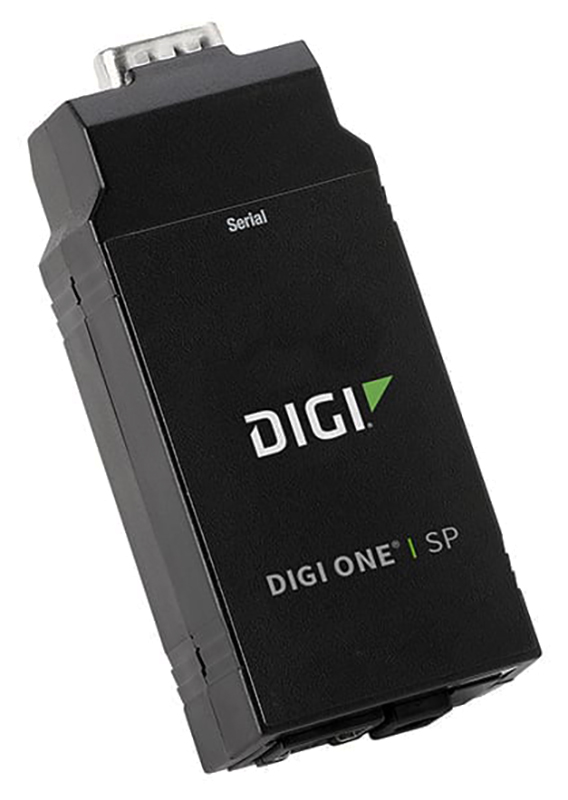

Digi One SP - Compact Serial Server - Pulse Supply

The Digi One SP is a Switch Selectable Expansion device for Asynchronous Connectivity in a compact Case.

Digi One® SP provides a reliable, cost-effective way to connect any type of serial device to the Ethernet. Its compact design delivers cost-effective performance and capability in one of the smallest form factors available.

Digi One SP supports a wide range of protocols using serial tunneling, TCP/UDP connections or Digi’s patented RealPort® COM port redirector for remote native COM port access. RealPort enables existing applications to communicate, without modification, with serial devices over the Ethernet as if they were communicating over a serial cable.

Digi One SP is easy to install locally or remotely. The IP address can be configured using DHCP, ARP-Ping, or the Device Discovery Utility that automatically detects all Digi One devices on the network. Using the web interface, users can configure advanced functions into their applications.

.



Digi One SP - Compact Serial Server - Pulse Supply







Key Features



  • Patented RealPort® for COM/TTY port control and management
  • TCP/UDP Socket Services for broad device connectivity and application use
  • Auto-connect the serial device to a networked server using raw, Telnet, rlogin
  • Reverse Telnet for easy access of serial devices from the network
  • Switch selectable RS-232/422/485 for simple interfacing to any type of serial device
  • Modem emulation allows support for devices designed only for modem communications

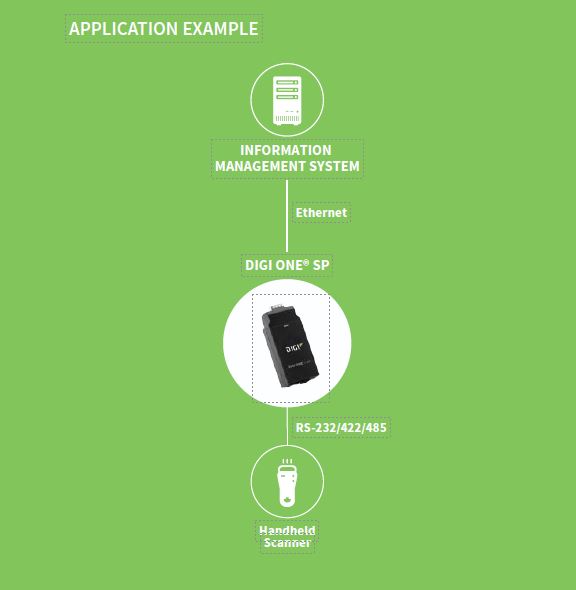

How it Works



Digi One SP - Compact Serial Server - Diagram





Digi One SP Applications

  • Components for Medical Devices
  • Outpatient Care Devices
  • Manufacturing Automation
  • Smart Grid
  • Water & Wastewater





Product Specifications





Specifications Digi One SP
Features
Management HTTP configuration
Protocols TCP/UDP Socket Services, UDP Multicast, Telnet, Reverse Telnet, RFC2217, DHCP/RARP/ARP-Ping for IP address assignment
Software Patented RealPort COM port redirector for COM/TTY ports
Operating Systems Microsoft Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019; and Linux®. Note: TCP/UDP socket services are operating system independent.
Status LEDs Power, Ethernet link and activity
Dimensions
(L x W x D)
9.40 cm x 4.30 cm x 2.30 cm (3.70 in x 1.72 in x 0.93 in)
Weight 65.00 g (2.29 oz)
Other Full modem and hardware flow control, modem emulation, wall mount kit (optional)
Interfaces
Serial Ports RS-232/422/485 (switch selectable)
Serial Connector DB-9M
Serial Throughput Up to 230 kbps
Ethernet Physical Layer 10/100Base-T
Power Requirements
Power Input 9-30 VDC @ 0.5 Amps max
Power Supply 12 VDC / 1.5 A max out; 100-240 VAC 50-60 Hz in (wall mount)
Power Consumption Typical: 4 W; Max: 6 W
Product Surge Protection (ESD) 4 kV burst (EFT) per EN61000-4-4, 2 kV surge transient per EN61000-4-5
Environmental
Operating Temperature 10º C to 45º C (50º F to 113º F)
Relative Humidity 5% to 90% (non-condensing)
Regulatory Approvals
Safety UL 60950, EN60950, CAN/CSA C22.2 No.60950
Emissions/Immunity FCC Part 15 Subpart B (Class A), EN55024, EN55022 (Class A), EN61000-3-2,3









DATASHEETS


Data Sheet:  Digi One SP
