N-Range 2.0

Cellular Signal Booster

Home Booster - SC-NRange2




Most Powerful Single User Vehicle Cell Signal Booster

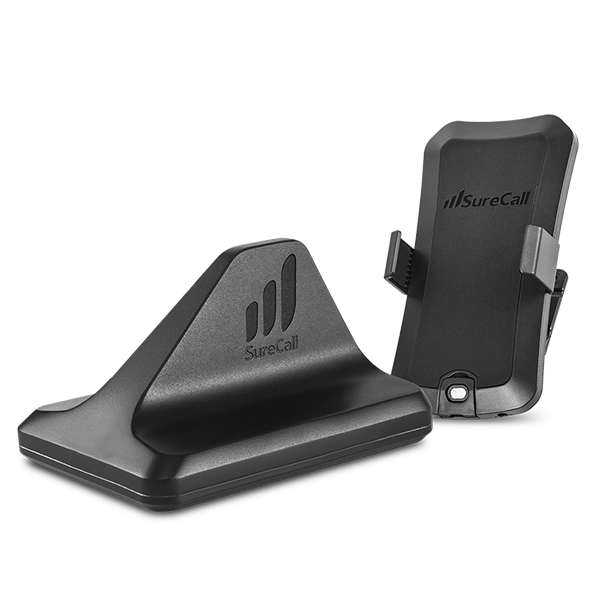

N-Range 2.0 - Signal Booster - Pulse Supply



Stay connected further with the go-to cradle booster that delivers faster data speeds, better call clarity, and best-in-class performance for more reliable voice and 4G LTE data for all carriers. N-Range 2.0 features SureCall's game-changing patented ERT and 2XP technologies that provide twice the uplink power, downlink gain, and higher Signal to Noise Ratio (SINR) giving the user the best possible performance in the most challenging of signal environments.



Extended Range Technology (ERT) amplifies cell signals outside the vehicle, bypassing cable loss and producing faster data speeds while keeping users connected farther from cell towers. N-Range 2.0 also boasts 2XP technology to further boost the vehicle-to-cell tower range by increasing the uplink transmission power two-fold. With both ERT and 2XP working in unison N-Range 2.0 is the best performing cradle-style cell signal booster on the road.



Key Features



  • Best performance in the most rural/remote areas
  • Works with all North American carriers
  • Compatible with all cellular devices, including hotspots
  • 5G compatible - N-Range 2.0 supports 4G LTE and 5G devices
  • Hands-free cradle delivers improved signal directly to your device
  • Multiple cradle mounting options: adhesive, permanent-mount, or vent clip
  • Quick and easy 3-step install and transferrable to any vehicle
  • Designed, assembled, and tested in the USA
  • Industry best 3-year warranty and lifetime US-based tech support





Product Specifications





Uplink Frequency Range (MHz): 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included)
Downlink Frequency Range (MHz): 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included)
Supported Standards: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE, and all cellular standards
Input/Output Impedance: 50 Ohm
Maximum Gain: 23 dB
Noise Figure: ≤7 dB
VSWR: ≤2.0
Gain Adjustment: 20 dB (Automatic)
DC Car Charger: 8-15V DC
Maximum Output Power: 1 Watt EIRP
Cable: RG-174
Cable Length: 15 ft
RF Connectors: SMA-Female
Power Consumption: <12W
Operating Temperature: -14ºF to +122ºF
Dimensions: 5" x 3.5" x 3"
Weight: 0.62 lbs
WARNING: California’s Proposition 65



Have more questions about SureCall Cellular Booster solutions? Need to Purchase SureCall Cellular Booster Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
