Force5 2.0

Cellular Signal Booster

Home Booster - SC-PolyO2-72




Most Powerful Cell Signal Booster for the Large Offices and Commercial Buildings

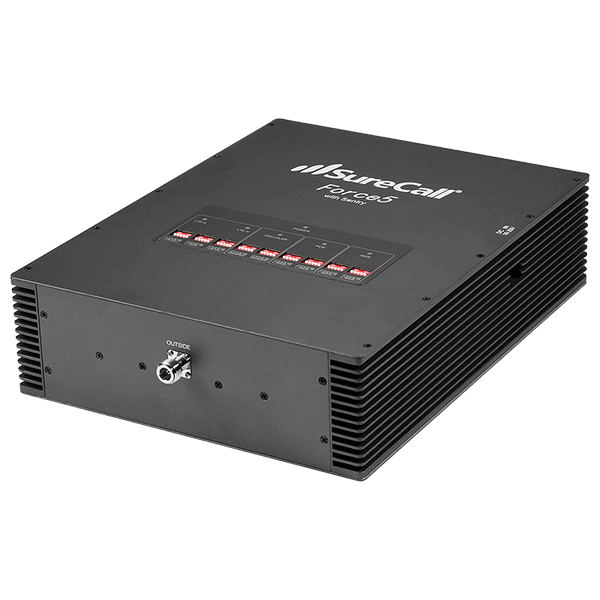

Force5 2.0 - Signal Booster - Pulse Supply



Commercial Integrator BEST and CE Pro BEST award winner, Force5 2.0™ is the next evolution in cellular signal boosting technology and the #1 DAS alternative.



Equipped with SureCall’s built-in Sentry remote monitoring hardware, Force5 2.0 is the first cell phone signal booster with integrated remote access to adjust and optimize booster performance from off-site via mobile app.



Key Features



  • Boosts voice, text, and 4G LTE signals for all North American cell carriers
  • Increases signal strength 25,000 sq ft in typical conditions and up to 100,000 sq ft in ideal conditions*
  • Reduces dropped & missed calls and improves data performance
  • SureIQ™ Technology balances incoming signals, preventing shutdown and maximizing performance in strong signal environments
  • +17 dBm downlink power provides expansive indoor coverage
  • Multiple kitting options offer the flexibility to customize installation in any building or floor plan
  • 5G compatible - Force5 2.0 supports 4G LTE and 5G devices
  • Industry best 3-year warranty and lifetime US-based tech support, 5-year extended warranty available



*Coverage up to 100,000 sq ft in ideal conditions with outdoor signal strength -50dB or stronger and open indoor spaces. Additional antennas may be required.



SENTRY REMOTE MONITORING

Force5 2.0's integrated Sentry hardware offers seamless off-site adjustments to maximize performance at every location. A must-have for building owners, managers, and installers, Sentry provides fast adjustments via remote access when continuous uptime is mission-critical.

  • Access via Android® app, iPhone® app, or Sentry web portal
  • Quickly pinpoint malfunctions due to unforeseen changes such as newly installed cellular towers or repeater systems
  • Immediately notifies you about booster changes and over-powering
  • Remotely monitor and adjust booster performance, including uplink, downlink, or band
  • Optimize installation by monitoring and identifying the strongest signal strength available



Product Specifications


Uplink Frequency Range (MHz): 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included)
Downlink Frequency Range (MHz): 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included)
Supported Standards: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE, and all cellular standards
Input/Output Impedance: 50 Ohm
Maximum Gain: 72 dB
Noise Figure: 5 dB
VSWR: ≤2.0
AC Power Transmitter: Input AC 110 V, 60 Hz / Output DC 15-20 V
Maximum Output Power: 1 Watt EIRP
Cable: SC-400
RF Connectors: N Female (both ends)
Operating Temperature: -4°F to +158°F
Power Consumption: <65W
Dimensions: 14.5" x 11" x 3.5"
Weight: 23.5 lbs
