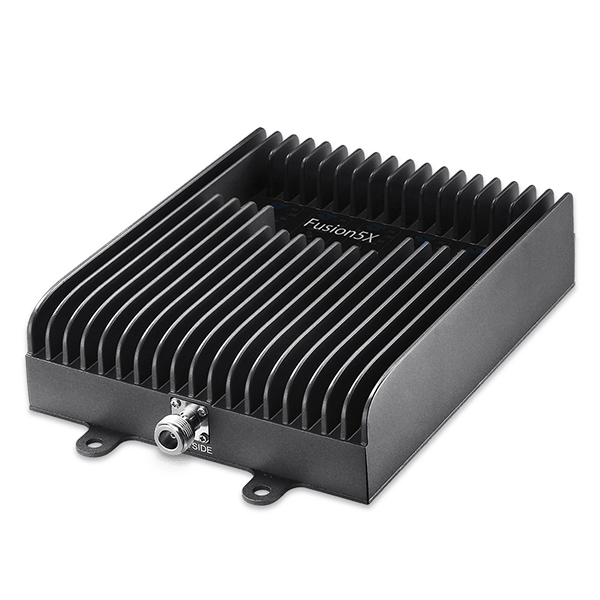

Force5X 2.0

Cellular Signal Booster

Home Booster - SC-Fusion5X2




Most Powerful Cell Signal Booster for Mid-Size Office Buildings
Force5X 2.0 - Signal Booster - Pulse Supply



Designed for mid-sized commercial buildings and large residences, Fusion5X 2.0™ increases voice, text, and 4G LTE signals for all North American cell carriers and devices. Configurable for all indoor environments, Fusion5X 2.0 reduces dropped & missed calls and improves 4G LTE data speeds to ensure everyone has a reliable connection to their mobile device.



Fusion5X 2.0 is the industry’s most powerful cellular signal booster in its class, covering up to 2X more area than the closest competitor. Its the chosen solution for mid-to large-size applications that need access to reliable voice, text, and data signals.



Maximum Coverage Area: +16 dBm downlink power for 2X more coverage area than the closest competitor.

SureIQ™ Technology balances incoming signals, preventing shutdown and maximizing performance in strong signal environments.

Remote Monitoring: Fusion5X 2.0 is compatible with SureCall Sentry which allows users and installers to monitor the booster’s performance, set up alert notifications via the mobile app, and adjust settings from anywhere, anytime.



Key Features



  • Works with all North American carriers
  • Compatible with all cellular devices, including hotspots, while extending their battery life
  • 5G compatible - Fusion5X 2.0 supports 4G LTE and 5G devices
  • Multiple kitting options offer the flexibility to customize installation in any building or floor plan
  • Industry best 3-year warranty and lifetime US-based tech support





Product Specifications


Uplink Frequency Range (MHz): 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included)
Downlink Frequency Range (MHz): 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included)
Supported Standards: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE, and all cellular standards
Input/Output Impedance: 50 Ohm
Maximum Gain: 72 dB
Noise Figure: 8 dB
VSWR: ≤2.0
AC Input: Input AC 110 V, 60 Hz / Output DC 12 V
Maximum Output Power: 1 Watt EIRP
Downlink Power: +16 dBm
Cable: SC-400
RF Connectors: N-Female (both ends)
Power Consumption: <25W
Operating Temperature: -4ºF to +158ºF
Dimensions: 9.25" x 6.375" x 1.375"
Weight: 4 lb 4 oz
