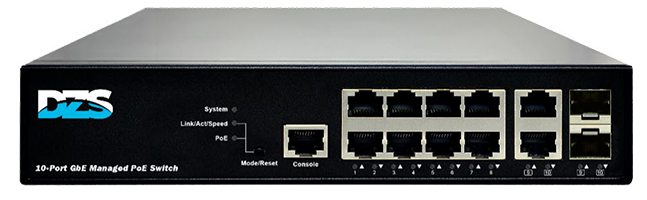

E3210PC - In-building 10G switch with PoE++ for ORAN small cells




The E3210PC is an L2+ managed Switch that combines the feature set of Enterprise applications with Mobile Transport and Carrier Ethernet. The E-Series is the ideal solution to complement DZS FiberLAN™ with point-to-point, in-building Small Cell deployments.

The E3210PC delivers 8 Gigabit Ethernet electrical ports (RJ45 10M/100M/1G) with PoE+ support (802.3 at/af with a total budget of 240W) on the subscriber side, and 2 combo (RJ45/SFP) Gigabit Ethernet ports on the network side.

The E3210PC provides high switching capacity and performance for a wide range of applications supporting a mix of enterprise, industrial and carrier-grade features.

The comprehensive Management features provide users with an easy-to-use/configure/install/troubleshoot system that supports a wide range of LAN applications including video surveillance, wireless access, small cells, and other carrier applications. E3210PC is ideal an ideal solution for the intersection of enterprise and mobile applications, with ease of use, outstanding user experience, and the lowest total cost of ownership.





     Zhone -  E3210PC - In-building 10G switch with PoE++ for ORAN small cells



Key Features

  • High switching capacity
  • Fully Managed solution
  • Feature-rich, L2 and L3
  • Synchronization support for Small Cells
  • Ethernet Ring Protection Switching
  • Advanced OAM
  • Green Ethernet
  • Active PoE up to 30W per port



Feature-rich Specifications to Support Various Applications
The switch delivers extensive industrial and carrier-grade functionalities, including linear (LEPS) and ring (ERPS) protection with ITU-T G.8031, ITU-T G.8032 respectively, with quick restoration times. Mobile coverage for indoor locations where the macrocell signal is low requires the deployment of Small Cells. These Mobile Transport applications have tight requirements for synchronization in frequency and phase. The E3210PC supports IEEE 1588v2, Precision Time Protocol (PTP), a timing standard used to synchronize clocks throughout a packet-based network. PTP can be used to achieve clock accuracy in the sub-microsecond range, making it suitable for measurement and control systems and Mobile Transport applications. The E3210PC provides advanced Active PoE features such as PoE auto-checking, PoE scheduling, and PoE power delay for users to manage the powered devices easily.

Superior Reliability through OAM and CFM for Service Assurance
The E-Series family of switches provides Operation, Administration, and Maintenance (OAM) support according to the industry main standards IEEE 802.1ag/802.3ah & Y.1731. These standards provide the required mechanisms for the network operators to monitor and guarantee that the proper service level requirements are met at all times. A comprehensive set of OAM tools can greatly simplify network management and monitoring resulting in reduced operational expenditures.

Lowing Total Cost of Ownership (TCO) with Energy-efficient Design
The switches part of the E-Series portfolio is designed to help companies to save power needs and reduce TCO. The E3210PC supports Energy Efficient Ethernet (IEEE 802.3az) standard, which is widely used for in-building and campus applications to build a greener packet-switched network.




Data Sheet

E3210PC - In-building 10G switch with PoE++ for ORAN small cells
