M3000 - Ultra-low latency Access/Aggregation router




The DZS M3000 takes Carrier Ethernet ultra-low latency switching for mobile AnyHaul and IP/MPLS aggregation to new levels, with unprecedented performance, quality-of-service, capacity, and security in a small footprint.

Next-generation mobile services will significantly raise the bar on performance requirements for AnyHaul by service providers and network operators. Rigid quality-of-service requirements in particular will make support for ultra-low latency, extraordinary capacity, and strong security paramount. Furthermore, service providers and operators will need to implement these new features in record time and extremely cost-effectively in order to compete in the market.

The DZS M3000 was architected to address these challenges head-on. Its low power consumption and high service scale give service providers and operators the agility they need to rapidly get to market, while its advanced features provide the peace of mind that they can capture the next generation mobile opportunity while migrating to an IP/Ethernet mobile platform with traffic management and carrier-class reliability.

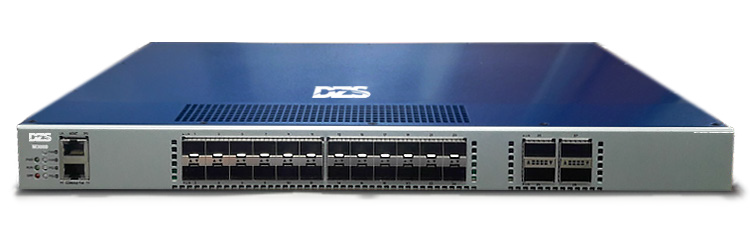

     Zhone -  M3000 - Ultra-low latency Ethernet/IP aggregation router



Key Features

  • 1 Tbps switching capacity
  • Fixed 24-port 1/10/25G and 4-port 40/100G optical interfaces
  • Supports multiple generations of mobile services (2G/3G/4G/LTE) and IP/MPLS
  • Advanced timing services for mobile clocking synchronization
  • Optimized for small aggregation and remote point-of-presence (POP) applications



Service Scenario

Extraordinary capacity and flexibility
With 1 Tbps switching capacity and fixed 24-port 1/10/25GbE and 4-port 40/100GbE optical interfaces, the M3000 provides the capacity and flexibility needed to support the transport requirements of next-generation mobile networks, as well as a wide range of network architectures. Its 10GbE or 25GbE interfaces can be used as downlinks towards the user network and 40GbE or 100GbE interfaces can be used either to cascade other switches or to connect to a core network devices.

Unmatched deployment flexibility and support
The M3000 can be used for a variety of new, revenue-generating applications, such as an L2/L3 Ethernet LAN switch in high-rise buildings or as a data center application and aggregation switch. Additionally, it helps to enhance network efficiency by offering dedicated L3 functionality. It can be used for various application scenarios as a mobile AnyHaul switch for the mobile, business, and residential markets (2G, 3G, 4G, LTE, and/or IP/MPLS). With low power consumption and high service scale, the M3000 is optimized for small aggregation and remote point-of-presence (POP) applications providing amazing deployment flexibility and efficiency. It also supports dual power supply units

Made for rigid performance and reliability requirements
The M3000 offers timing services, allowing for mobile clocking synchronization from the core of the network. It also provides 2 mounting slots for the dual power modules and 2 mounting slots for the fan on the rear panel. PSU modules support 1:1 redundancy and load sharing, so it is possible to operate as non-stoppable. Fan operation is controlled by the internal CPU block, so fan speed is controlled based on internal system temperature. Security features include storm control for broadcast, multicast, and unknown unicast packets, outbound management, and Secure Shell (SSH) support.

An asset to wireless operators
The M3000’s ability to interface with a variety of generations of mobile backhaul technologies and support various network architectures make it a valuable tool for wireless operators. Its ability to adapt to the evolving network and bandwidth needs of users make it both cost-effective and ready for the future.




Data Sheet

M3000 - Ultra-low latency Access/Aggregation router




Have more questions about Zhone/DZS Broadband Connectivity products or need to purchase? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
