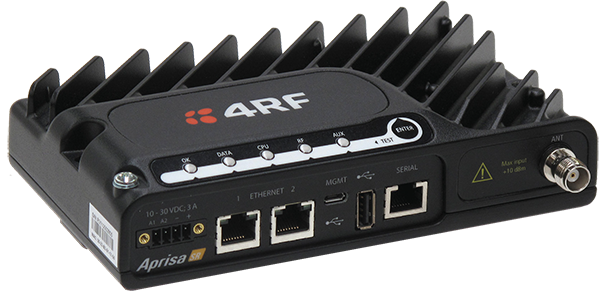

Aprisa SR
Industrial Wireless Router
VHF and UHF Bands - Point to Multi-Point
smart, secure, point-to-multipoint SCADA communications for oil, gas, and utility monitoring and control
The Aprisa SR and Aprisa SR+ are distance-engineered and optimized for SCADA and telemetry applications, providing reliable, robust performance however demanding the conditions: what we call ‘real world radio’. RF performance is unbeatable, with attention paid to every element of the design: transmitter, receiver, modulation, and efficiency. The receiver maintains exceptional low noise operation via excellent sensitivity for greater distance and high selectivity and intermodulation suppression for superior protection from interference. This performance is complemented by fast switching circuitry and high transmit power ensuring long-distance operation with exceptional system reliability and availability.
Key Features
- Secure: with its defense-in-depth approach, including AES encryption, authentication, address filtering, and user access control, the Aprisa SR protects against vulnerabilities and malicious attacks.
- Future-proof: the Aprisa SR supports serial, Ethernet, and IP interfaces in a single, compact form factor, and is standards-based for long term incorporation into SCADA networks while protecting the legacy
investment in serial devices. - Advanced L2/L3 capabilities: selectable L2 Bridge or L3 Router modes, with VLAN, QoS, and filtering attributes to support narrow bandwidth channels and mission-critical traffic while meeting increasing security and IP network policy requirements.
- Efficient: the ability to configure detailed radio parameters means that network performance and efficiency can be optimized for the exact network topology, however complex.
- Flexible: the Aprisa SR integrates into a range of network topologies, with each unit configurable as a base station, repeater, or remote unit.
- Easily managed: an easy-to-use GUI supports local element management via HTTPS and remote element management over the air, and SNMP support allows network-wide monitoring and control via a third-party network management system.
- Reliable and robust: the Aprisa SR requires no manual component tuning and maintains its high power output and performance over a wide temperature range.
Aprisa Details
- VHF and UHF licensed bands
- RS-232 and IEEE 802.3 protocols
- 6.25 kHz, 12.5 kHz, and 25 kHz channel sizes
- Up to 19.2 kbit/s data rate
- 256, 192, or 128 bit AES encryption
- 4-CPFSK modulation
- Transparent to all common SCADA protocols
- Dual antenna port option
- Protected station options
- –40 to +70 °C operational temperature
- 177 mm (W) x 110 mm (D) x 41.5 mm (H)
- Single or dual frequency, half-duplex
- ETSI, FCC, and IC standards compliant
- Seamlessly integrates with Aprisa XE point-to-point radio
Aprisa SR Applications
- Offshore rigs and onshore pump jacks
- Transmission pipelines
- Electricity generation plants and turbines
- Power storage and distribution
- Water and waste processing plants
Product Specifications
| Aprisa SR short-form specification | |
|---|---|
| Topology | Point-to-Multipoint (PMP) operation |
| Operating mode | Base Station, Remote Station, Repeater Station or Base- repeater Station |
| Licensed frequency bands | VHF 135 135-175 MHz VHF 220 215-240 MHz UHF 320 320-400 MHz UHF 400 400-470 MHz UHF 450 450-520 MHz UHF 896 896-902 MHz UHF 928 928-960 MHz |
| Channel sizes | 12.5 kHz, 25 kHz, and 50 kHz (software selectable) |
| Gross data rates | QPSK ETSI 20 kbit/s in 12.5 kHz, 40 kbit/s in 25 kHz, 80 kbit/s in 50 kHz QPSK FCC / IC 20 kbit/s in 12.5 kHz, 32 kbit/s in 25 kHz, 72 kbit/s in 50 kHz |
| Modulation / FEC | QPSK with advanced FEC |
| RF operation | Half-duplex RF operation |
| Antenna ports | Dual / single antenna port product options |
| Data interface ports | Ethernet - 2 ports RJ45 10/100Base-T switch Serial - 2 ports RJ45 RS-232 (Additional RS-232 port via USB converter) |
| Transmit average output power | 0.01 – 5.0 W |
| Compression | Ethernet header and IP/TCP/UDP ROHC header compression Ethernet and serial payload compression to increase the narrowband radio capacity |
| Protocols | Ethernet - IEEE 802.3 IEEE 802.3, 802.1d/q/p with L2 Bridge or L3 Router modes Serial - Legacy RS-232 transport |
| VLAN support | IEEE 802.1Q VLAN support with single and double VLAN tagged |
| Encryption and authentication | Data encryption and authentication using 128,192 and 256 bit AES and CCM security standards |
| Protection | Fully monitored, hot standby, hot-swappable |
| International standards | RF, EMC, safety, and environmental EN 60950 Class 1 Division 2 for hazardous locations ETS 300 019 Class 3.4, Ingress Protection IP51 Substation hardened to IEEE 1613 class 2 and IEC 61850-3 |
| Compliance | ETSI, FCC, and IC |
*Exact specifications vary according to the product variant and local certifications: please see the datasheet relevant to you for exact product specifications for your region.
DATA SHEETS
Data Sheet: Aprisa SR (UHF/VHF)
