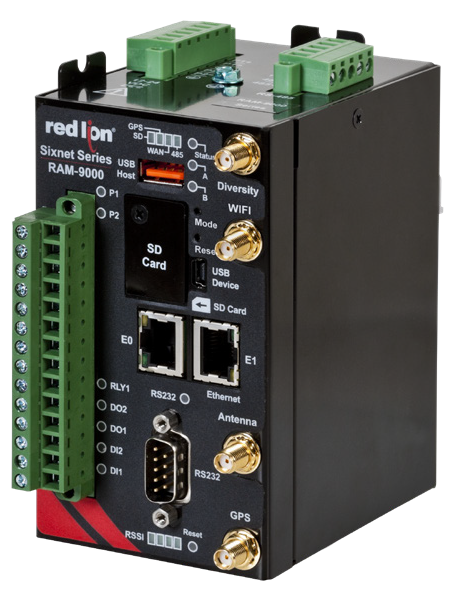

RAM 9000 Cellular RTUs

Industrial Wireless Router

4G LTE and 3G  Industrial Cellular Routers  -  USA, Canada, and Global



RAM 9000 Cellular RTUs - Industrial Wireless Router - Pulse Supply

High-Density I/O RTUs with GPS and Local Control.

The Sixnet® series RAM® 9000 high-density I/O cellular RTUs with multi-carrier 4G LTE support provide advanced control and communication in IIoT applications for remote assets and processes in extreme conditions.

The RAM 9000 industrial cellular RTUs seamlessly connect Modbus and DNP3 enabled SCADA equipment via software selectable multi-carrier 4G LTE to remote networks or select Industrial Internet of Things (IIoT) Cloud platforms. Featuring a web-based event engine that can trigger built-in I/O or send SMS text messages based on real-time operational data, RAM cellular RTUs can perform advanced control at the edge and alert personnel of critical events. A built-in I/O concentrator allows the RAM to collect sensor data from onboard I/O or connected devices. RAM RTUs can optimize cellular data consumption by optionally reporting only on an exception or only transmitting relevant data points saving time and money. With built-in Ethernet, serial, digital, and analog I/O and GPS, RAM RTUs easily integrate with existing equipment enabling remote monitoring and control for M2M applications in industries including oil and gas, water/wastewater, utility, transportation, and mining.





Key Features



  • On-Board High-Density I/O with concentrator
    • 2 digital inputs, 2 digital outputs, 3 analog inputs, and 1 form c relay reduce the need for external I/O devices
  • Multiple Communication Ports
    • RS-232 and RS-485 provides seamless connectivity to remote devices
    • Native Modbus and DNP3 Support
  • Rugged, Industrial Design
    • -40° to 70°C operating temperature*
  • Cloud Connectivity to IIoT Cloud Platforms
    • Allows for seamless communication with leading IIoT cloud platforms using MQTT messaging protocol
  • IEEE802.11b/g/n Wi-Fi Compliant - Access Point
  • • Supports local access to communicate with network assets
    • Configure and update firmware without physically connecting to RAM
  • Secure Ethernet Connectivity
    • Routing capabilities for reliable communication
    • Stateful firewall, SSL, GRE and VPN services, and deep packet inspection reduce the risk of unwanted access
  • Advanced RTU Functionality
    • Configurable control engine with drop-down menus
    • Powerful data logging of I/O registers to SD Card or internal storage
  • Low-Profile Form Factor - At 2.75 inches wide



RAM 9000 Cellular RTU Details

  • High-Performance Multi-Carrier 4G LTE Connectivity
  • Built-in I/O Lowers Total System Cost
  • Multiple Communication Ports
  • Powerful data logging for process analysis
  • Cloud Connectivity to IIoT Cloud Platforms
  • Event Engine that can Send SMS Messages or Control I/O Based on Operational Data





RAM 9000 Cellular RTU Applications

  • Mining
  • Oil & Gas
  • Transportation
  • Utility
  • Water/Wastewater





Product Specifications

See  RAM 9000 Cellular RTUs Data Sheet

See  Supported Protocols Brochure



Have more questions about Industrial Wireless Router solutions? Need to Purchase Red Lion Industrial Wireless Router Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
