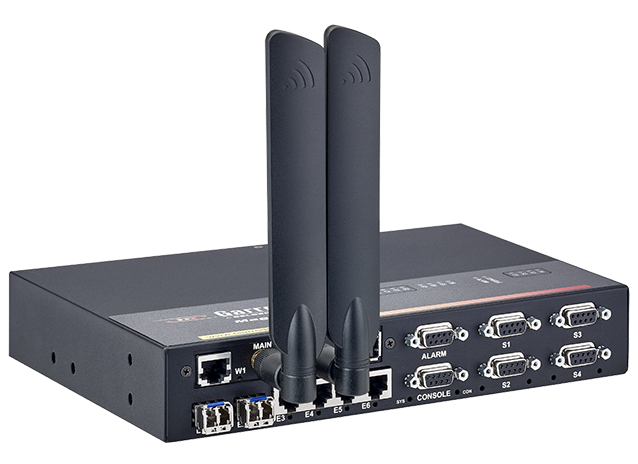

Magnum DX940e

Industrial Wireless Router

4G Ethernet Gateway  -  USA and Canada



Magnum DX940e - Industrial Wireless Router - Pulse Supply

With more configurable ports and extensive Verizon-certified 4G/LTE capability, this compact industrial router brings enhanced flexibility and security to remote access.



Offers enhanced connectivity with high-speed Verizon, AT&T, and worldwide 4G/LTE cellular interface for secure remote access


Uses high-end, robust cybersecurity mechanisms with advanced safety features, IP routing, and guaranteed network protection with firewall layers


Integrates seamlessly into existing infrastructures through up to six highly configurable Gigabit Ethernet interfaces and legacy leased circuits for backward compatibility



Key Features



  • High-speed all-Gigabit Ethernet interfaces, with up to six ports
  • Verizon-certified 4G/LTE cellular interface for North American markets to provide secure remote connectivity
  • 3G and WCDMA Support
  • T1/E1/DDS or GbE for WAN support; Multiple Gigabit Ethernet and serial ports for LAN
  • NERC-CIP compliant for secure data transfer across public networks
  • RS232 and RS485 protocols based
  • Serial-to-IP conversion for backward compatibility and interfacing with legacy equipment
  • Enhanced cybersecurity capabilities: SSL/TLS encryption, IPSec-VPN tunneling, Layer 3
  • Firewall and secure IP routing with advanced RIP, OSPF, and BGP features
  • Operating temperature range of -40°C to +85°C



OWL LPWAN Details

  • With up to six configurable Gigabit Ethernet ports, Belden’s Magnum DX940e utility router offers dynamic routing protocols and enhanced cybersecurity features for highly configurable and secure remote communication.
  • The DX940e base unit with configurable four 1000Mb or 100Mb SFP Ethernet or 10/100/1000 RJ45 ports. Other additions: 4 serial, 2-gigabit fiber/ copper, choice of two WAN access ports (4G/LTE Cellular, T1/E1, DDS WAN). Includes IP routing, Ethernet switching, and secure management. MNS-DX software license included. Panel mount. Panel, DIN-RAIL, or Rack mounting options and conformal coating is also available.



OWL LPWAN Applications

  • The DX940e is ideal for applications that require high-speed and secure data transfer remotely over long distances, especially those where cellular signals are readily available. The router’s ruggedized, compact and flexible design helps with integration into tight infrastructures, and compliance with NERC CIP standards makes it ideal for both wired and cellular WAN networks.
  • The DX940e is best suited for utility markets, including energy and power, transmission and distribution, smart grids and substations, bringing reliable connectivity into hard-to-reach places. Roadside traffic controls, transportation stations, and other locations where cellular signals are critical will also benefit from this upgraded router. The device can be placed on both moving vehicles and used in control rooms, providing user and communication metrics. The oil and gas industry is another suitable application for the DX940e, as the router can withstand harsh conditions in moisture-rich environments.



Product Specifications

 DX940 base unit with configurable four 100Mb SFP Ethernet or 10/100 RJ45 ports. Other additions: 4 serial, 2 gig fiber/copper, choice of two WAN access ports (Cellular, T1/E1, DDS WAN). Includes IP routing, Ethernet switching and secure management. MNS-DX software license included. Panel mount. Other mounting options and conformal coating are also available.



Configurable Ports
Four 10/100 Ethernet ports Configured as auto-negotiating RJ45 copper ports
Four 100M SFP Ethernet ports SFP fiber modules are available as 100Mb fiber (multi-mode and single-mode.) Single-mode up to 40km. Multi-mode up to 2km - Configurable 100Mb or 1000Mb speed (based on the SFP type). 100 Mb speed with FDX or HDX, default is FDX mode. 1000 Mb speed with Configurable 100Mb or 1000Mb speed (based on the SFP type). 100 Mb speed with FDX or HDX, default is FDX mode. 1000 Mb speed withFDX only. Max. 6 SFP (Small Form-factor Pluggable) for high fiber port density.
Two Gigabit Ethernet ports Two 10/100/1000 Copper ports or two Gigabit SFP sockets for Gigabit fiber via Gb SFP's
Four Serial DB9 ports RS232/RS485 software selectable DB9 interface. Serial data rate from 300 bps to 230.4 kbps. Data length - 1-32 bits.
Cellular WAN ports

4G/LTE Bands: Americas/EMEA (B1, B2, B3, B4, B5, B7, B12, B13, B20, B25, B26, B29, B30, B41); APAC (B1, B3, B5, B7, B8, B18, B19, B21,B28, B38, B39, B40, B41)

3G/WCDMA Bands: Americas/EMEA (B1, B2, B3, B4, B5, B8); APAC (B1, B5, B6, B8, B9, B19) 3G/TD-SCDMA Bands: APAC (B39)

WAN Ports DDS: 56/64 kbps OR T1/E1: 1.544 Mbps / 2.048 Mbps G.703; Full
rate and fractional (N*56/64kbps); Integral CSU/DSU
Network Standards
IEEE 802.3z, 802.3ab, 802.1p: 100BASE-TX, -FX, 1000BASE-SX, -LX,
IEEE 802.3u: Auto-negotiation on TP
IEEE 802.3x, 802.1p: flow control and prioritization
IEEE 802.1Q: VLANs, maximum 4k VLANs
IEEE 8021.1d, 802.1w: Spanning Tree, Rapid Spanning Tree including RSTP2004 extensions providing sub-second hop on rings
IEEE 802.1p: DiffServ, traffic prioritization for routed IP flows/ports
Serial Protocols
Async to TCP/IP – including Modbus gateway for connectivity to serial Modbus devices and to other Modbus Ethernet devices; TCP/IP to serial/
reverse terminal server, Serial Multipoint & Multimaster Topologies; PPP with authentication.
Software
See MNS-DX datasheet for details on MNS-DX, MNS-DX-SECURE and MNS-DXADVAR licensed software
Management & Diagnostics
Industrial HiVision or Web-based Graphical User Interface (GUI) or CLI access via SSH or Telnet. Powerful built-in protocol analyzer to assist with troubleshooting.
Powerful built-in protocol analyzer to assist with troubleshooting
Other: Comprehensive statistics, SNMP MIB-II and SNMP Traps, Routing Information, DHCP, ARP, and other tables.
Environmental Monitoring
Alarm Port: Relay contacts for alarms, Form C, two NC/NO, software controllable
Operating Environment
IEC 60068 Op. Temp. per "Type Test" -40° to 185°F (-40° to 85°C)
UL 60950 "Component Parts" temperature rating: 140°F (60°C)
Storage: -40° to 185°F (-40°to 85°C),
Ambient relative humidity: 5% to 95% (non-condensing)
Altitude: -200 to 13000 ft (-60 to 4000 m).
Conformal coating (humidity protection option):  To be chosen during ordering
Power Options
High Voltage (H): 90-250 V AC or DC, 50-60Hz, 0.3A, 27 W
Low Voltage DC (L): 24-48 V DC, 1.3A, 31 W
Power Consumption: 33 Watts for fully loaded Fiber configuration; 20 Watts minimum
Mechanical
Dimensions: 9.5" W x 9.0" D x 1.75" H (24.13 cm x 22.86cm x 4.45 cm);1 RU
Weight: 5 lbs (2.3 kg)
Mounting: 19" ETSI and 23" Rack, Panel Mount and DIN-Rail
Agency Approvals And Standards Compliance
Safety: UL 60950-1, cUL, EN60950–1, CSA C22.2, Emissions meet FCC
Part 15, Class A. IEEE 1613 Class 2 Environmental Std., IEC 61850-3,
IEC 61000-6-5 for Electric Power Substations, NEMA TS-2 for traffic control
Immunity: EN55024, EN61000-6-2, EN61000-4-2 (ESD), EN61000-4-3 (RF),
EN61000-4-4 (EFT), EN61000-4-5 (SURGE) EN61000-4-6 (CRF), EN61000-4-
10 (MAG FIELD), EN61000-4-11 (VDI), EN61000-4-12 (OSCILLATION),
EN61000-4-16 (CCM), EN61000-4-17 (RIPPLE), EN61000-4-29 (VDI)
Warranty:
Three years





DATA SHEETS


Data Sheet:  Magnum DX940e







Have more questions about Industrial Wireless Router solutions? Need to Purchase Belden Industrial Wireless Router Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
