MAX HD4 MBX

Industrial Wireless Router

4G LTE Industrial Cellular Router  -  USA and Canada

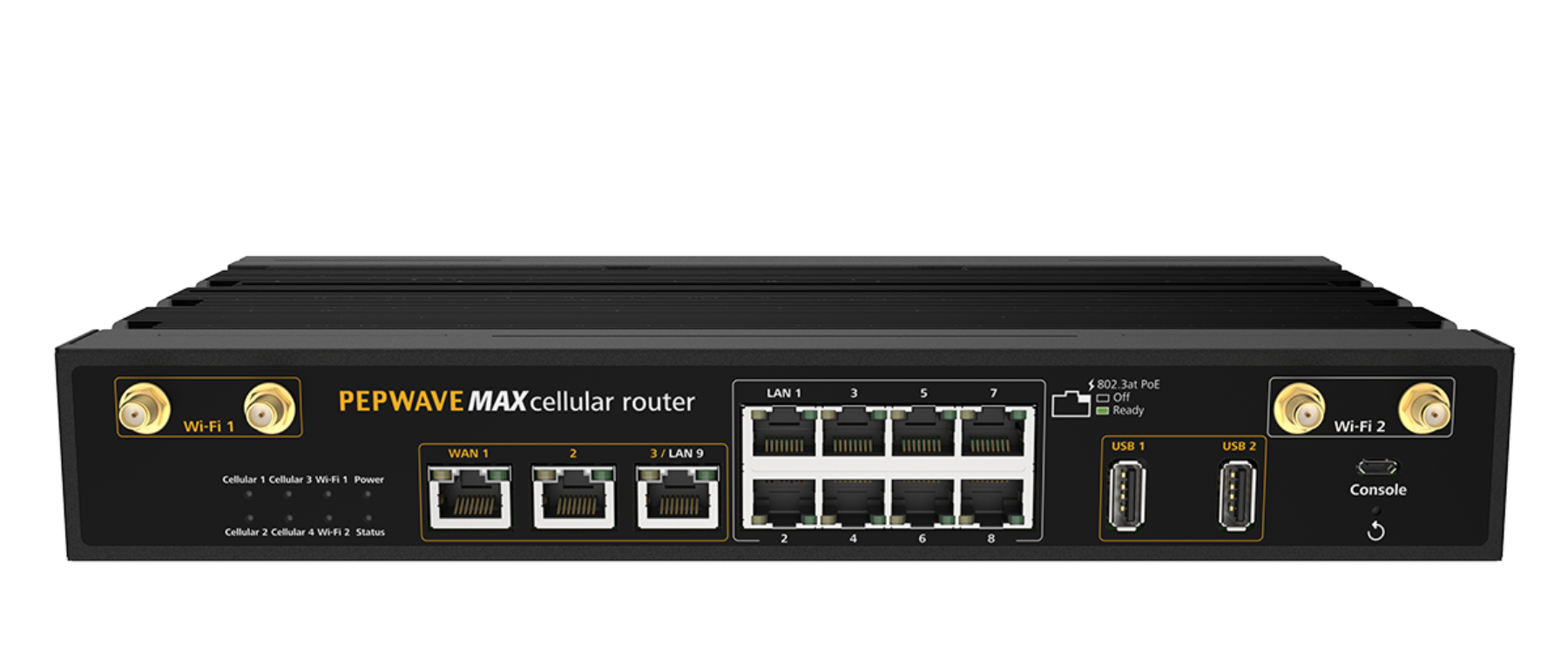

Pepwave MAX HD4 MBX - Industrial Wireless Router - Pulse Supply

Upgradable Quad-Cellular Gigabit LTE Powerhouse.

The HD4 MBX is capable of combining the bandwidth of up to 4 cellular links into an unbreakable, high-speed SD-WAN connection. The HD4 MBX supports up to 8 SIM cards, with room for another 8 with the optional SIM Injector. With up to 16 cellular providers to connect to, spotty coverage will simply not be a problem.

Ignition Sensing gives it the ability to turn on and off depending on whether the vehicle has started. Upon vehicle shutdown, the MBX can also shut down after a user-defined interval, saving the battery from the excessive drain.

The HD4 MBX is designed for industrial usage. With its fanless design, it thrives in high-particle environments that would break other fan-based routers. The HD4 MBX also comes with 8x 802.3at PoE outputs to power your IP phones, cameras, and access points. Finally, the MBX has the same dimensions as the previous HD4, so it can fit seamlessly into any of your previous deployments.



Key Features



  • The MAX HD4 MBX is a high-performance Quad 4G LTE Mobile Router
  • Available Model in 5G
  • 4 Embedded LTE Modems with Redundant SIM Slots
  • 2.5Gbps Router Throughput
  • 802.11ac/a/b/g/n, 1166 Mbps 2x2 MIMO Wi-Fi WAN and/or AP Simultaneous Dual-Band
  • Up to 500 users
  • VPN Capability up to 20 users
  • Optional PoE Output Support
  • GPS
  • Low-Profile Form Factor - At 2 inches high



MAX HD4 MBX Details

  • The rugged and mobile MAX HD4 MBX is a perfect solution for transportation and fleet tracking applications
  • FirstNet Ready
  • In addition to a rugged metal enclosure, HD2 has certifications on Shock and vibration resistance (EN 61373:2010) RF Port Lightning Immunity(ITU-T K.20 (+/- 1.5 kV)) Railway Applications (EN 50155) Electromagnetic Compatibility (EN 61000)
  • Customize Captive Portal. Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS.
  • Fleet Tracking and Management. With built-in GPS fleet tracking and InControl cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected devices
  • The HD4 MBX comes with multiple features to make it ideal for on-the-go deployments. Ignition Sensing gives it the ability to turn on and off depending on whether the vehicle has started. Upon vehicle shutdown, the MBX can also shut down after a user-defined interval, saving the battery from the excessive drain.
  • The HD4 MBX supports the optional SIM Injector, which adds another 8 cellular providers to connect with. This mitigates weak spots in cellular coverage, ensuring consistent connectivity. If your deployment crosses national boundaries, you can also use the SIM Injector to load multiple SIM cards, preventing roaming charges. Finally, the HD4 MBX has rolling stock certification, meeting the strictest requirements of transportation deployments.

Pepwave MAX HD4 MBX rear view -  Industrial Wireless Router - Pulse Supply



MAX HD4 MBX Applications

  • Transportation
  • Bussing
  • Fleets
  • Public Safety
  • Police and Rescue
  • Telemedicine
  • Railway
  • Marine
  • Helicopter
  • Events & Temporary Connectivity





Product Specifications



See  MAX HD4 MBX Data Sheet



Have more questions about Industrial Wireless Router solutions? Need to Purchase Peplink or Pepwave Industrial Wireless Router Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
