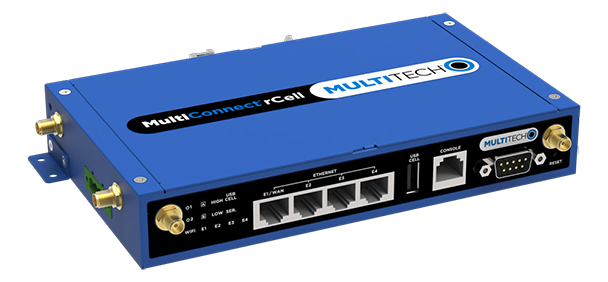

MultiConnect rCell 500

Industrial Wireless Router

4G LTE Extended Industrial Cellular Router  -  Europe



MultiConnect rCell 500 - Industrial Wireless Router - Pulse Supply

LTE Industrial Cellular Router with Wi-Fi® for Europe

MultiConnect® rCell 500 Series extends your network's reach into your remote sites, connect payment and inventory management systems, monitor equipment performance, and provides always-on failover connectivity through your choice of broadband wireless networks. The intuitive user interface and free cloud device management (no recurrent monthly fees) allow for quick configuration and over-the-air upgrades.

Ready for deployment in Europe, the MultiConnect® rCell 500 Series is an easy to configure LTE broadband wireless and Ethernet router, boasting up to 128 concurrent Wi-Fi® connections, a configurable serial port that is able to control IT assets and communicate with industrial appliances.



Key Features



  • 4G LTE performance up to 150 Mbps downlink and 50 Mbps uplink (CAT4)
  • LTE FDD, B1/B3/B7/B8/B20/B28A
  • LTE TDD, B38/B40/B41
  • DC-HSPA+/HSPA+/HSPA/UMTS/GSM/GPRS/EDGE
  • 4 Ethernet 10/100 LAN/WAN ports
  • Configurable Serial port RS-232/RS-485 MODBUS bridge
  • Wi-Fi (802.11 b/g/n) supports up to 128 concurrent connections
  • Dual power supply input, 12-48VDC
  • Dual SIM/USIM cards
  • Simple web interface for configuration and management
  • Automatic WAN failover and fallback
  • Global Certification Forum (GCF) certified wireless module
  • Industrial DIN rail mounting
  • Remotely-hosted device management platform
  • Two-year warranty



MultiConnect rCell 500 Details

  • The MultiConnect rCell 500 Series of cellular routers can be used in a wide variety of applications such as remote sites with IT assets, telemetry, kiosks, POS, industrial equipment communications to a central office, smart energy, inventory management monitoring, always-on connectivity with failover and fallback capabilities. Solution providers are able to quickly deploy with 4G connectivity and realize new revenue streams, Opex reduction, improved service quality capabilities.
  • The MultiConnect rCell 500 Series of cellular routers use IPSec industry-standard data encryption to provide high performance, secure LAN-to-LAN VPN connections with 3DES or AES encryption using IKE and PSK key management. Support for 32 concurrent VPN tunnels.

MultiConnect rCell 500  - Industrial Wireless Router - Pulse Supply

MultiConnect rCell 500 Applications

  • Connect Management Systems
  • Connect Payments Systems
  • Infrastructure Monitoring and Analysis
  • Smart Buildings
  • Smart Factories
  • Smart Offices
  • Healthcare
  • Transportation and Logistics

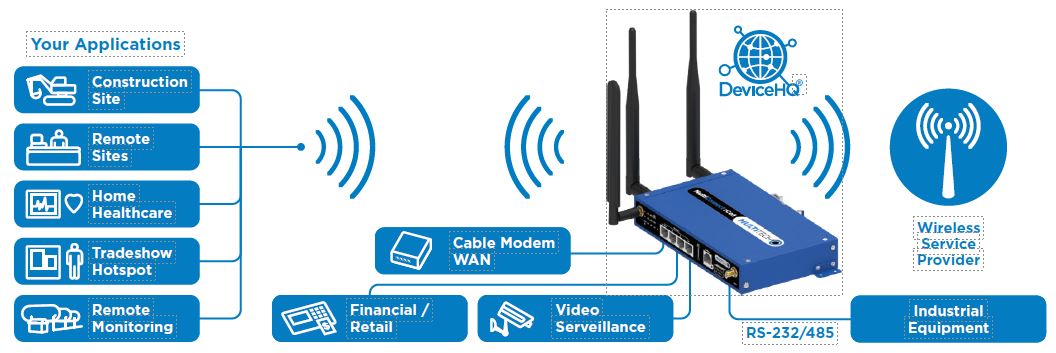

multiconnect rcell 500 drawing - Pulse supply



Product Specifications



DATA SHEETS


Data Sheet:  MultiConnect rCell 500






Have more questions about Industrial Wireless Router solutions? Need to Purchase Multitech Industrial Wireless Router Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
