MG90

Industrial Wireless Router

5G/4G LTE  Industrial Cellular Router  -  USA, Canada, and Global

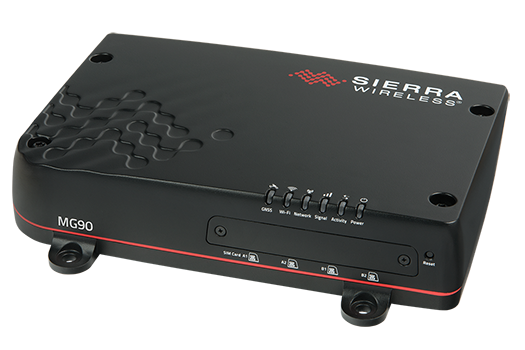

Airlink MG90 - Industrial Wireless Router - Pulse Supply

Multi-Network, Dual Radio, 5G LTE Rugged Vehicle Router for Transit, Rail, and First Responder Fleets.

The best-in-class AirLink® MG90 is purpose-built for transit, rail, and first responders with dual-Cellular radios and dual Gigabit Wi-Fi delivering always-on connectivity with extensions to Land Mobile Radio (LMR) and satellite systems.

The rugged 5G router is capable of 4.14 Gbps downlink and 660 Mbps uplink speeds. Four Ethernet ports, serial connections, GNSS, and optional Wi-Fi. Also available in CAT 4 LTE.





Key Features



  • The MG90 is a High Speed 5G LTE Wireless Router
  • Dual Cellular Modems with up to 4.14Gbps download
  • Quad SIM Slots
  • FirstNet Ready
  • Up to 10 VPN Tunnels
  • Integrated with ACM VPN Server
  • IPsec protocol with IKEv1/IKEv2 Encryption: 3DES/AES128/AES256
  • Hashing: MD5/SHA1/SHA256/SHA512
  • Key Exchange: DHGroup2/5/14/15/16/17
  • FIPS 140-2
  • Wi-Fi - Dual Radio, dual concurrent 3x3 MIMO 802.11 b/g/n/ac, 2.4/5 GHz (each radio), Support for 128 clients. WWPA2 Enterprise. Captive Portal.
  • RS-232 Serial Port - DB-9
  • Configurable I/O and digital inputs
  • Dual USB 3.0 Ports
  • GPS
  • Power Port with Ignition Sensing
  • DIN Mounting
  • Low-Profile Form Factor - At 1.8 inches short



MG90 Details

  • 5G connectivity delivers massive amounts of real-time data needed for mission-critical applications
  • Proven solution: More than 25% of the top 50 transit agency vehicles and 75% of high-performance EMS systems depend on Sierra Wireless routers.
  • Increases safety, transparency, and compliance while maximizing system expandability and ROI
  • Delivers advanced awareness of fleet operations with built-in vehicle I/O for remote monitoring of auxiliary devices such as light bars, sirens, and gun racks

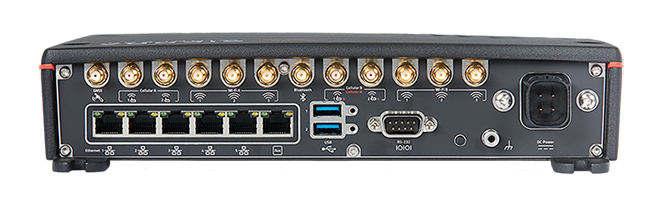

MG90 rear-  Industrial Wireless Router - Pulse Supply



MG90 Applications

  • Buses/Transit
  • Ambulance/EMS
  • Police
  • Fire
  • Utilities





Product Specifications

See  MG90 Data Sheet

See  MG90 Info Sheet



Have more questions about Industrial Wireless Router solutions? Need to Purchase Sierra Wireless Industrial Wireless Router Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
