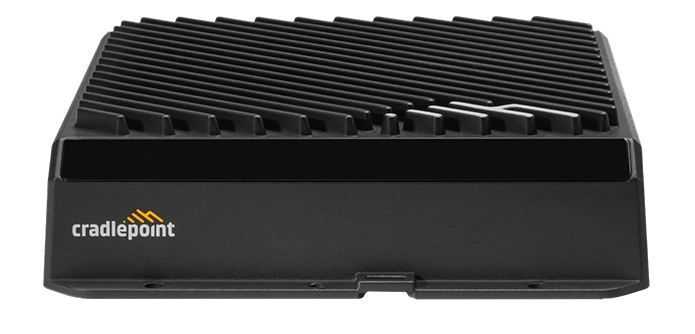

R1900 Series

Industrial Wireless Router

4G/5G Ethernet Gateway  -  USA and Canada

Cradlepoint’s NetCloud Mobile Performance Service with the R1900 Series Router is a ruggedized 5G networking platform, designed to provide persistent connectivity for in-vehicle deployments. Cradlepoint NetCloud provides connectivity, network, security, location, and IoT services to connect everything in the vehicle while providing access to IT for remote management, troubleshooting, and analytics.

For organizations that depend on field forces and mobile networks, the Cradlepoint R1900 mobile router with the NetCloud Mobile Performance Service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. When coupled with the Advanced Mobile Performance Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality including location tracking and cellular coverage maps. The R1900 accommodates environmentally harsh environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.

The R1900 mobile router includes an embedded 5G modem that can automatically connect to Cat 20 LTE if the vehicle moves outside of 5G coverage. In addition, the R1900 mobile router is designed to accept the RX30 managed accessories which provide either four additional GbE PoE ports or four additional GbE ports and a second modular modem. It also has the ability to act as a controller for a separate Cradlepoint 5G Wideband Adapter. These two capabilities, along with the continually improved NetCloud platform, ensure the ability for future expansion and the best investment protection available.

Key Features

• Deploy the ultimate 5G NR / Cat 20 LTE mobile networking solution with industry-leading features
• Add a second cellular modem with the optional RX30 managed accessory for simultaneous dual-carrier connectivity
• Take advantage of Wi-Fi 6 for the best possible connections
• Enable unified edge security with application-aware multi-zone firewalls, IDS/IPS, and internet security
• Define policies through centralized cloud-based management for easy deployment at scale
• Integrate into Automatic Vehicle Location systems with discrete GNSS and dead reckoning
• Create a cellular coverage map for complete visibility into your area’s 5G and LTE coverage
• Extend your deployment with additional PoE ports, GPIOs, NetCloud SDK and API, Bluetooth, and container support for customizable solutions

R1900 Series Details

• Stateful Firewall Throughput: 940 Mbps
• IPS Throughput: 940 Mbps
• Application-Aware Services & Analytics: 940 Mbps
• IPSec VPN Throughput: 400 Mbps
• Concurrent VPN Tunnels: 20
• Concurrent Sessions (TCP): 32,000
• Typical Client Count: 100

*Performance testing was conducted based on requirements as defined in RFC2544 using fixed-frame 1518 byte packets. Throughput results reflect unidirectional UDP traffic with less than 1% packet loss as tested with wired connections. Results do not reflect the performance of the cellular wireless operator networks.

R1900 Series Applications

• Purpose-built to withstand extreme environments, the R1900 is an all-in-one mobile networking solution ideally suited for installations within a wide range of vehicles including metro transit buses, school buses, commercial fleets, as well as first responder vehicles such as police, fire, ambulance, and mobile command trailers.

Product Specifications

Category	Mobile
	Cloud Management	Yes
	Wireless Connectivity	Dual Connectivity; 5G & Cat 20 LTE
	5G Status	5G Embedded
	Form Factor	Ruggedized Metal
	Ethernet Ports	4 GbE (LAN/WAN switchable)
	Console Ports	1
	Serial Ports	1
	Bluetooth	Yes, embedded Bluetooth 5.1
	Dual-Modem Support	Yes, with RX30-MC
	Network Operator Standards	PTCRB (U.S), GCF (global)
	Network Operator Certifications	AT&T, T-Mobile, Verizon
	Regions	North America, Latin America, Europe, Africa/Middle East, Asia-Pacific
	Public Safety Networks	FirstNet ReadyTM (pending), Verizon Frontline
	Throughput	940 Mbps (Firewall)
	VPN Tunnel Count	20
	Wi-Fi	Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
	GNSS/GPS	Discrete active GNSS with dead reckoning
	PoE	Yes, with RX30-PoE
	Operating Temperature	-30 °C to 70 °C (-22 °F to 158 °F)
	Rack Mountable	No
	Private Cellular Network	Yes (4G, 5G, CBRS)
