WR44 R

Industrial Wireless Router

3G/4G Ruggedized Router  -  USA and Canada

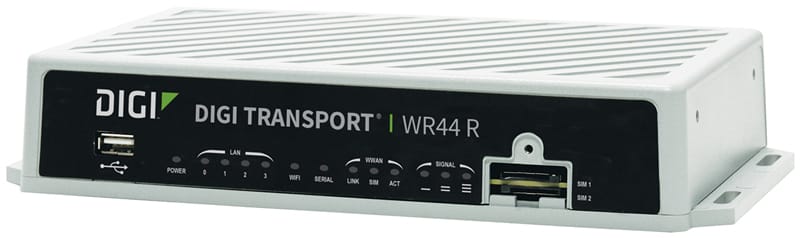

WR44 R - Industrial Wireless Router - Pulse Supply

Compact, semi ruggedized LTE router with Industrial feature set and reliable, cost-effective connectivity for critical industrial applications.

The TransPort® WR44 R is a rugged, all-in-one 4G LTE-Advanced mobile communications solution with true enterprise-class routing, security, and a firewall. Featuring a heavy-duty cast aluminum enclosure, it offers a flexible interface design with an optional integrated Wi-Fi access point (with multi SSID), USB, serial, and 4-port Ethernet switch, as well as a variety of configuration options including GPS and CAN support.

These routers are ideal for transportation and mobile applications. Flexible power options include 9-36 VDC lock barrel or automotive Molex connectors for direct integration into vehicle applications. Also ideal for mobile applications is the cellular to Wi-Fi auto-switch feature, which uses the highest speed/lowest cost WAN network available.

All Digi TransPort products offer an advanced routing, security, and firewall feature set including a stateful inspection firewall and integrated VPN. Enterprise-class protocols incorporate BGP, OSPF, and VRRP+. Advanced features allow the Digi TransPort to be used as a component of a PCI-compliant network.

Gain critical insights into your deployed devices and manage your network with Remote Manager® — the command center for your deployment.





Key Features



  • Rugged, enterprise-class cellular routers with advanced dynamic routing, security, and firewall features
  • Heavy-duty cast aluminum enclosure for reliable performance in rugged environments
  • Integrated 802.11 ac/a/b/g/n; a/n Wi-Fi access point (optional) and 4-port Ethernet switch
  • Flexible interfaces including GPS and CAN with DC power
  • Cellular to Wi-Fi autoswitch feature automatically uses the highest speed/lowest cost WAN network available
  • Digi Remote Manager platform for easy setup, mass configuration, and management



WR44 R Series Details

  • Automated Network Monitoring: To keep tabs on dozens, hundreds, or thousands of active connected devices requires network monitoring software. Human eyes can't keep up. With Digi RM remote monitoring tools, you're in command. As your IoT device management platform, Digi RM watches your network for disruptions and intrusions, and lets you know when you need to take action. Set alerts for important conditions. Get reports on network performance. Check on any device, anywhere, anytime.
  • Firmware Updates: Today's IoT devices are smarter, more feature-rich, and have more tasks to perform at the edge. And they are not static. You may need to update the firmware to enhance functionality, download custom scripts, keep your devices in compliance with corporate security policies, or deploy patches for threats to IoT security. Digi Remote Manager puts the network management tools in your hands to deploy firmware updates or send files to your devices in minutes, even if you have a network of many thousands of devices. Manage your dynamic network with a few clicks. Keep your devices secure.
  • Configuration Management: Digi Remote Manager has what other IoT device management platforms don't: the ability to configure all of your devices at once, make individual configuration changes, and still manage those specialized configurations in groups. Create a group and individual configurations. Deploy rapidly and accurately. Let Digi RM monitor device security
  • Detection and Troubleshooting: Digi RM is always on, even during your network manager’s off hours. As your network monitoring solution, Digi RM lets you know when issues arise, sending alerts and delivering reports so your team can rest easy. At any time, they can gain the insights needed on the health of the entire network or individual devices and remotely troubleshoot, test, and reboot devices as needed. Put network monitoring tools to work for you, so you can work smarter.



WR44 R Series Applications

  • Transportation
  • Vehicles
  • Mobile Communications
  • Mass Transit
  • Bus Transit



Product Specifications



SPECIFICATIONS Digi TransPort WR44 R
WIRELESS INTERFACES
CELLULAR*
CERTIFICATIONS Visit https://www.digi.com/resources/certifications for latest certifications
LTE - NORTH AMERICA/EMEA (M8) LTE Advanced Cat 6: 700(B12,B13,B29)/800(B20,B26)/850(B5)/900(B8)/AWS(B4)/1800(B3)/1900(B2,B25)/
2100(B1)/2300(B30)/2500(B41)/2600(B7)
3G HSPA+: 850/900/AWS/1800/1900/2100 MHz
Transfer rate (max): 300 Mbps down, 50 Mbps up
Approvals: PTCRB, AT&T, Verizon, Vodafone (pending)
LTE - EMEA/APAC (M7) LTE Cat 4: 800(B20)/900(B8)/1800(B3)/2100(B1)/2600(B7)
HSPA: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 150 Mbps down, 50 Mbps up
LTE - ANZ/LATAM (L9) LTE-Advanced Cat 6: 700(B28)/850(B5,B18,B19)/900(B8)/1500(B21)/1800(B3)/1900(B39)/2100(B1)/
2600(B7,B38)/2300(B40)/2500(B41)
3G HSPA+: 800/850/900/1700/2100 MHz
Transfer rate (max): 300 Mbps down, 50 Mbps up
LTE - EMEA/APAC (M2) LTE Cat 3: 450(B31)/800(B20)/1800(B3)/2600 (B7)
HSPA+: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 100 Mbps down, 50 Mbps up
CONNECTOR (2) 50 Ω SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY SIM slot cover plate
WI-FI**
STANDARD 802.11 ac/a/b/g/n 2.4/5 GHz
MODES Access point, client and support for multiple SSID
TRANSMIT POWER 20 dBm + 1.0/-1.5 dBm
RECEIVE SENSITIVITY 54 Mbps / < -72 dBm and 11 Mbps / -90 dBm
SECURITY Open or shared key authentication; WEP (64- and 128-bit) encryption; WPA/WPA2 with RADIUS (WPA-enterprise and pre-shared keys)
CONNECTORS (2) 50 Ω RP-SMA (center pin: male)
GPS**
CHANNELS 50
SENSITIVITY -163 dB
PROTOCOL NMEA 0183 V2.3 sentence output; +3.3 VDC active antenna drive; NMEA stream to local serial port or over TCP/IP
NAVIGATION Galileo ready
AUGMENTATION SBAS
COLD START < 27 seconds TTFF (90%)
HORIZONTAL ACCURACY < 2.5 meters (90%)
VELOCITY ACCURACY 0.1 m/s
CONNECTOR 1 x 50 Ω SMA (center pin: female)
ADDITIONAL FEATURES Send GPS via UDP/IP, TCP/IP (up to two destinations) or serial; customize and/or send data using Python; GPS status query; time source capable
WIRED INTERFACES
SERIAL
PORTS (1) DB-9; DCE
STANDARD RS-232
SIGNAL SUPPORT TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI
FLOW CONTROL Software (XON/XOFF), hardware supported
ETHERNET
PORTS (4) RJ-45; 10/100 Mbps (auto-sensing)
USB
PORTS (1) USB 2.0 Type A
OTHER
EXPANSION CARDS Option of fleet expansion card
SOFTWARE
REMOTE MANAGEMENT Digi Remote Manager* (cloud-based); SNMP v1/v2c/v3 (user-installed/managed)
LOCAL MANAGEMENT Web Interface (HTTP/HTTPS); CLI (Telnet, SSH, SMS, Serial port)
MANAGEMENT/
TROUBLESHOOTING TOOLS
FTP, SFTP, SCP, protocol analyzer with PCAP for Wireshark, event logging with Syslog and SMTP, NTP/SNTP
MEMORY 128 MB NAND Flash / 64 MB DDR2 SDRAM
POWER
INPUT 9 – 36 VDC
CONSUMPTION 15 W max, 8.5 W typical
CONNECTOR Locking barrel and 4-pin terminal block (2 pins are used for power; the other 2 pins are used for I/O).
PHYSICAL
DIMENSIONS (L X W X H) 140 mm x 254 mm x 48 mm (5.5 in x 10 in x 1.9 in)
WEIGHT 1.1 kg (2.4 lbs)
STATUS LEDS Power, LAN, Wi-Fi, serial, WWAN (link, act, SIM), signal strength
MATERIAL/RATING Aluminum alloy / IP30
MOUNTING (4) mounting slots on the unit’s flange
ENVIRONMENTAL
OPERATING TEMPERATURE Non-Wi-Fi variants: -40° C to 70° C (-40° F to 158° F); single-Wi-Fi variants: -20° C to 70° C (-4° F to 158° F); dual-Wi-Fi variants: -20°C to 60°C (-4° F to 140° F); reduced cellular performance may occur above 60° C (140° F)
STORAGE TEMPERATURE -40° C to 85° C (-40° F to 158° F)
RELATIVE HUMIDITY 0% to 95% (non-condensing) @ 25° C (77° F)
ETHERNET ISOLATION 1.5 kV RMS
SERIAL PORT PROTECTION (ESD) 15 kV
APPROVALS
CELLULAR PTCRB, NAPRD.03, GCF-CC, R&TTE, EN 301 511
CDMA/EV-DO CDG TIA/EIA-690, CDG TIA/EIA-98-E
SAFETY UL 60950, CSA 22.2 No. 60950, EN60950
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55022 Class B
INDUSTRY Vehicle Usage: E-Mark (Regulation 10.05)
EN 300 019-2-5 (specification for environmental tests for ground vehicle installations - covers temperature, humidity, vibration, and shock)
WARRANTY
PRODUCT WARRANTY 3-year*****
** Optional hardware.
** Transfer rates are network operator dependent.
****The enclosure rating is self-declared and has not been formally verified by an independent lab.
*****Standard 3-year warranty upgradeable to 5 years with the purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.


ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOLS HTTP, HTTPS, FTP, SFTP, SSL, SMTP, SNMP (v1/v2c/v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager; SMS management, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; Dynamic DNS client compatible with BIND9/No-IP/DynDNS
SECURITY/VPN Stateful inspection firewall with scripting, address, and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, FIPS 197, open VPN client and server; PPTP, L2TP; (5) VPN tunnels (upgradable to a maximum of 200); Cryptology: SHA-1, MD5, RSA; Encryption: DES, 3DES, and AES up to 256-bit; Authentication: RADIUS, TACACS+, SCEP for X.509 certificates; content filtering (via 3rd party) ; MAC address filtering; VLAN support; Ethernet port isolation
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; Routing protocols: PPP, PPPoE, RIP (v1, v2) OSPF, SRI, BGP, iGMP routing (multicast); RSTP (Rapid Spanning Tree Protocol); IP failover: VRRP, VRRP+TM; automatic failover/failback to second GSM network/standby APN
OTHER PROTOCOLS DHCP; Dynamic DNS client compatible with BIND9/No-IP/DynDNS; QoS via TOS/DSCP/WRED; Modbus UDP/TCP to serial; X.25 including XOT, SNA/IP, TPAD and PAD; protocol switch; Modbus bridging for connecting diverse field assets




DATA SHEETS


Data Sheet:  WR44 R

Data Sheet:  Product Models Feature Comparison
