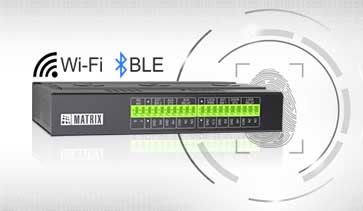

Cosec ARC DC200P - Multi-Door IP Access Controller
The COSEC ARC DC200P is a multi-door IP access controller, based on the “IP to door” concept eliminating need of age-old individual cable laying requirements between access panel to a reader or lock for Access Control applications. COSEC ARC works on the forefront Wi-Fi or PoE+ IT infrastructure with a door controller on each door with minimum wiring that improves solution reliability and reduces installation cost drastically. It supports two Matrix RFID or fingerprint readers on RS485 or third-party readers on the Wiegand interface for entry or exit. New age Bluetooth based credentials allow users from their mobile application from a distance and making COSEC ARC an ideal solution for any Access Control installation. Moreover, COSEC ARC is SSL enabled PoE+ controller which provides secure communication between controller and server makes it ideal for any, critical or simple access control organizational applications. COSEC ARC also supports multi-mount options such as wall-mount and standard din rail mount.
Key Features
- Higher Capacity
-50,000 Users
-5,00,000 Events Storage - IP to Door
-No need to lay a long cable between the control panel and reader or lock
-Reduce Cost - 2-Door Controller
-Control Two Doors from One Door Controller
-Reduce Additional Hardware Device Cost - Secured Communication
-Difficult to breach
-Security - Auto Push Event Data
-Quick Decision
-Save Time - Easy Integration
-Seamless Integration with Existing Third Party Wiegand Readers
-Aux-In and Aux-Out Port to Connect Third Party Devices - Mobile based Access
-Open Door Using User’s Mobile
-Future Proof, Convenience - Advanced Connectivity
-Bluetooth, Wi-Fi, PoE+, Ethernet
-Use Existing IT Infrastructures
-Meet Future IT Infrastructure Requirements - Compact Design
-Fits Easily Above the Door on a False Ceiling
-Fits into an Organisation’s Aesthetics Needs - Power to Lock and Readers
-PoE+ Enables Power to Lock Directly from Device without -Adaptor
-Reduce Cost
Applications
- Access Control

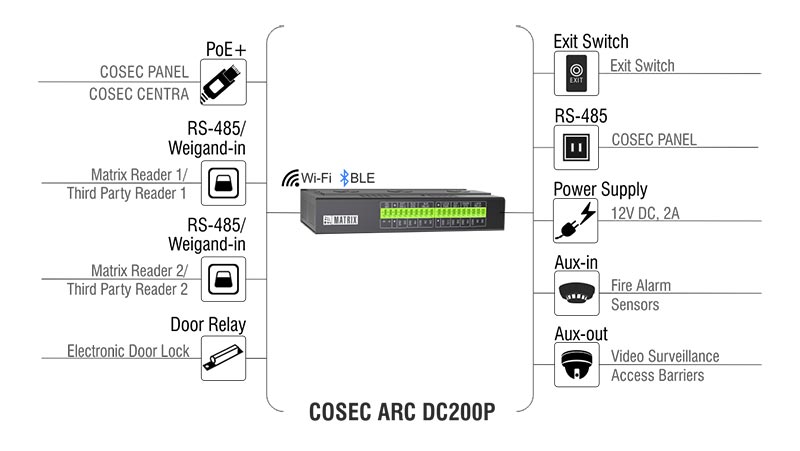

Interface Diagram
Technical Specifications
| GENERAL | |
|---|---|
| Maximum Readers | 2 Matrix or Third-Party Readers |
| Maximum Doors | 2 Doors/Locks |
| CAPACITY | |
| Maximum Users | 50,000 Users in Server Mode 25,000 Users in Standalone Mode |
| Event Buffer | 5,00,000 Events Storage on FIFO |
| COMMUNICATION | |
| Wi-Fi | Yes |
| Bluetooth | Yes (BLE Version 4.2) Bluetooth Functionality will Work as a Credential with COSEC APTA Mobile Application. |
| Ethernet | Yes. 10/100 Mbps |
| PoE+ | Yes (IEEE 802.3 af/at) (PoE/PoE+) |
| RS485 | Yes. Connect Matrix Readers |
| Wiegand | Yes. Connect 3rd Party Wiegand Readers |
| INTERFACE | |
| Exit Switch Port | Yes |
| Door Status Sense | Yes (4- state) Programmable NO, NC and Supervised |
| Door Lock Relay | Yes (Max. 30VDC @ 2A) |
| Aux-In | Yes (4-state) |
| Aux-Out | Yes (Max. 30VDC @ 2A) |
| Reader Distance | 400 meters (on RS485)/100 meters (on Wiegand) |
| HARDWARE | |
| CPU | AM3352 Processor, 800 MHz |
| Memory | Flash: 256MB; RAM: 2 GB |
| Reset Switch | Yes (for Making Device Default) |
| AUDIO VISUAL | |
| LEDs | 1 Tri-Color LED |
| Buzzer | Yes |
| ENVIRONMENTAL | |
| Operating Temperature | -10 °C to + 50 °C (14°F to 122°F) |
| Humidity | 5% to 95 % RH Non-Condensing |
| POWER | |
| Power | Adaptor: 12 VDC @ 2 A PoE+: 12 VDC @1.8 A |
| Power to Door Lock | With PoE: 12VDC@ 0.5A for 1 Lock With PoE+: 12VDC @ 1A for 1 lock or 12VDC @ 0.5A for 2 Lock (0.5A Each Lock) Adaptor: 12VDC@ 1A |
| Reader Power Output | Max 12VDC @ 0.250A (on External Supply or PoE/PoE+) |
| MECHANICAL | |
| Dimensions (WxHxD) | 78mmx140mmx25mm (3”x5.5”x0.98”) |
| Weight | Product Weight: 0.45 Kg (0.99Lbs) Product with Accessories Weight: 0.74 Kg (1.63Lbs) |
| Enclosure Material | Metal Aluminium Casing (Black) |
| CERTIFICATIONS | |
| Certifications | RoHS, CE, FCC and UL |
| COMPATIBILITY | |
| Matrix Readers | COSEC PATH Series and COSEC READER CB Third-Party Wiegand Readers |
| Operational Modes | Server Mode (With or Without PANEL LITE) with CENTRA or VYOM Standalone Mode (With PANEL LITE) |
| INSTALLATION | |
| Mounting | Wall mounting with L shape Hinge Din rail mounting provision. (Din rail mounting part is not included) |
| PACKAGING | |
| Packaging Content | 1. Main unit 2. Adaptor (12VDC, 2A) 3. Wall mounting plate 4. Screws M5*24 CSK -2 Nos 5. Reader Cables (2 pcs.) 6. Connectors |
