Cosec COGNIFACE INTEGRA200 - Face Recognition System




Time-Attendance with Face recognition provides employees with quick and touchless attendance tracking to the workplace. Face recognition systems require a door controller, IP camera, and a server but many customers want an all-in-one Time-Attendance solution which is easy to purchase, install, and use.

COSEC COGNIFACE INTEGRA200 combines all elements used for face recognition into a single package for ease of transportation, installation, mounting, and application at the customer end. Many additional and useful features have been added to make this package ideal across various verticals such as construction sites, manufacturing plants, government, corporates, pharmaceutical industries, transportation and logistics, retail, and hospitality. COSEC COGNIFACE INTEGRA200 combines the IP rated camera and door controllers into a single aesthetically pleasant metal enclosure design keeping all essential controls like IP connectivity, Power connectivity, and battery switches at convenient places for ease of use. With the IP camera of 2 MP, the door controller, used in this solution also supports face as a credential.

Create a large system for corporate and enterprise environments with Access Control Software. This complete software package allows large complex systems and integration with the existing architecture and an array of complimentary Cosec modules and devices.



     Cosec Cogniface Integra200 - Face Recognition System





Key Features



  • All in One
  • Single Plug and Play Unit
  • Neat and Clean Product Installation
  • Easy to Use



  • Deep Learning Technology
  • High Identification Speed
  • Greater Accuracy & Highly Reliable
  • Improve Productivity and Security



  • Multiple Biometric Credentials
  • Face, Fingerprint, PIN and RFID Cards
  • Dual Verification for High-Security Applications
  • Flexibility



  • Higher User Template and Event Storage Capacity
  • User Capacity: 50,000
  • Fingerprint Capacity: 25,000 (1:N) and 1,00,000 (1:1)
  • Face Capacity: 1,00,000 (1:N)
  • Event Capacity: 5,00,000



  • Battery Backup
  • Stand for Two Hours without Power Supply
  • Easy for Transportation



  • Touch Screen with Gorilla Glass
  • Impact Resistant
  • Scratch Proof



  • IP65 Controllers with Tamper Detection
  • Performance in Challenging Conditions
  • Robust



  • Universal IP Platform
  • Universal Structured Cabling
  • Zero Maintenance



  • IP66 and IK10 Cameras with Sony Starvis Series Sensor
  • Water and Dustproof
  • Vandal Resistant
  • Tamper Detection
  • Exceptional Low Light Performance



  • Encrypted Communication
  • AES-256 Bit Encryption
  • SSL Enabled
  • Highly Reliable
  • Snoop-proof and Hack Proof



  • Auto Push Technology
  • Real-time Data Transfer
  • High Accuracy
  • No Manual Download



  • Advanced Sensor Algorithm and ARM Processor
  • Better User Experience
  • Ultrafast User Verification
  • No Long Queues
  • Keep on Going
  • Very High Throughput







Applications

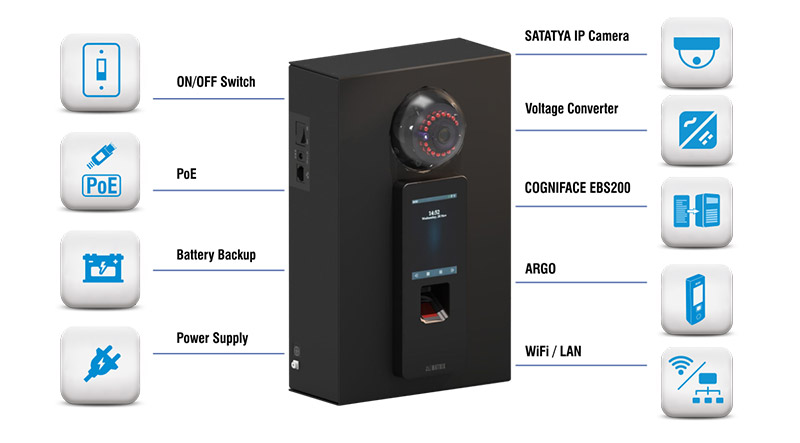

Interface Diagram



Cosec Cogniface Interface Diagram



Variants





cogniface integra argo foe212

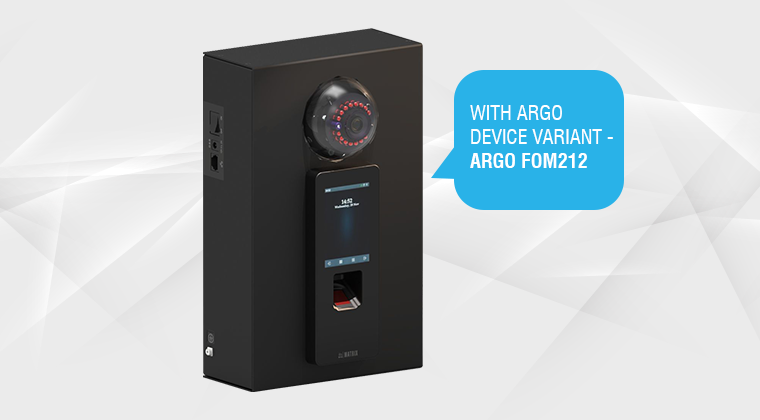

cogniface integra argo fom212





Technical Specifications



GENERAL
Credential Support Face, Fingerprint, RF Card, PIN and Bluetooth
Camera Yes, 2MP Matrix IP Camera - MIDR20FL28CWS
RF Option EM Prox Card/ Mifare Support (Inbuilt)
DISPLAY
Display 3.5" IPS Display with Capacitive Touch Panel with Gorilla Glass
Display resolution 480 X 320 Pixel (HVGA)
CAPACITY
Max. Users 50,000
Max. Fingerprint Template Storage 25,000 in 1: N Mode and 100,000 in 1:1 Mode
Max Face Template Storage 100,000 in 1:N Mode
Event Buffer 500,000 Events
HARDWARE
OS Embedded LINUX
CPU 800 MHz ARM Cortex A8 Based Processor
Memory 512 MB Flash + 512 MB DDR3 RAM
Battery Backup Yes, Up to 2 Hours (Rechargeable- 2 Batteries Additional)
Mounting Options Wall Mounting
Power 12V DC @ 2A
Dimensions Wall Mount: 311mm(H) x 193mm(W) x 85mm(D)
Enclosure Material Aluminum Metal
Dimension 311x193x85 (hxwxd)
AUDIO-VISUAL
User Photo Display Yes
Buzzer Yes
Communication
Bluetooth BLE 4.2 (10m)
Wi-Fi Yes
FINGERPRINT SENSOR
Sensor Name Suprema Optical Sensor
Sensor Technology Optical Technology
Encryption 256-bit AES
EER <0.08%
Resolution (dpi) 500
Sensing Area 16.0mm x 18.0mm
ENVIRONMENTAL
Operating Temperature 0°C to +45°C
Humidity 5% to 85% RH Non – Condensing
Thermal Sensor Yes, Built-in to Indicate Overheat Conditions
Enclosure Contents COSEC ARGO FOE212/FOM212
SATATYA MIDR20FL28CWS
COSEC COGNIFACE EBS200
ETHERNET SWITCH
BATTERY BACKUP
12V ADAPTOR
ON/OFF SWITCH
