Matrix VTEP - VOIP TO T1/E1/PRI GATEWAY




The VTEP is a compact VoIP solution, dedicated and feature-rich VoIP to T1/E1 PRI Gateway. It is a single-span Gateway offering 30 simultaneous VOIP to ISDN PRI calls. This in-line device sits between ISDN PBX and T1/E1 PRI line to connect PBX users to the IP network for cost-effective communication. For an IP based system, it provides T1/E1 PRI trunking. The Gateway efficiently delivers toll grade voice quality with industry-standard voice codecs and advanced QoS techniques. Multiple mounting options and remote management through web-based console add to the operating ease. The Gateway is suitable for SMBs, large enterprises, VOIP service providers and system integrators for a smooth migration to the new age IP telephony. It helps them control the communication overheads and realize an earlier return on investment through advanced features and functionalities. With VTEP, multi-branch offices can use their existing broadband connections to setup cost-effective IP communication among them.

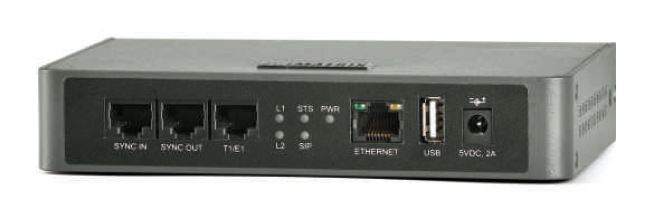

     Matrix SETU VTEP - VOIP TO T1/E1/PRI GATEWAY



Key Features



  • Up to 30 Simultaneous VOIP to ISDN PRI Calls
  • T1/E1 PRI Port with Programmable TE/NT modes
  • Deployable in all SIP-based VOIP Network
  • Register with Multiple SIP Service Providers
  • Simultaneous Peer-to-Peer and Proxy Calling
  • ISDN Network Clock Synchronization for Error-free Communication
  • Fax over IP (T.38 and Pass-through)
  • VLAN Tagging for Advanced Networking
  • Restrict Unwanted Calls with a List of Denied Numbers
  • 2,000 Call Detail Records
  • PIN Authentication to Prevent Unauthorized Usage
  • Caller ID Presentation and Restriction
  • SNMP Monitoring
  • TR-069 Auto-configuration
  • VOIP Security over SRTP/TLS Encryption
  • Web-based Configuration and Management





Applications

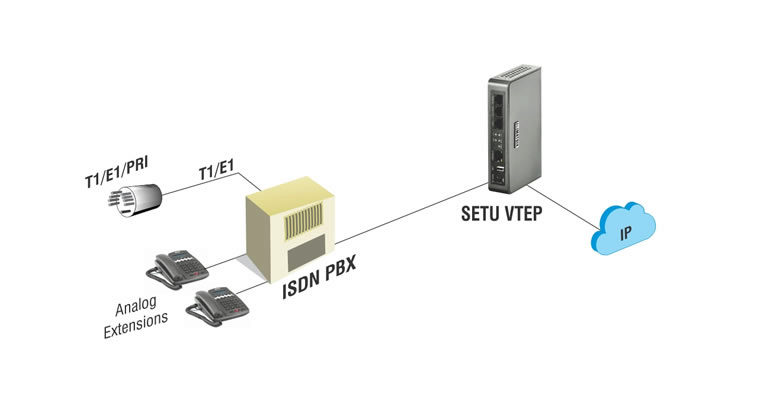

VOIP Gateway for Traditional ISDN PBX

  • VOIP Access for Legacy Phone Systems with T1/E1 PRI Lines
  • Programmable TE/NT Modes
  • Retain Existing PBX Infrastructure and Dialing Habits
  • Use of Existing Terminals for Placing VOIP Calls
  • Network Clock Synchronization for Error-free Communication
  • Compatible with other Brand’s ISDN PBXs

SETU VTEP - VOIP TO T1/E1/PRI GATEWAY - Application

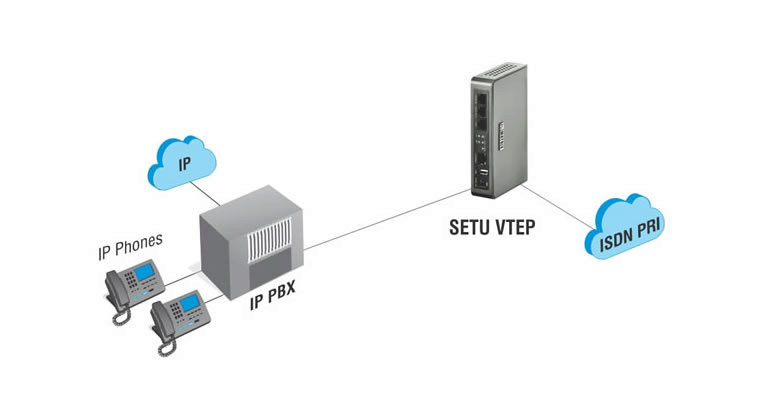

ISDN PRI Gateway for IP-PBX

  • ISDN Gateway with PRI Trunking for IP based System
  • Deployable in all SIP-based VOIP Networks
  • Connectivity to Traditional and Widespread ISDN PRI Network



SETU VTEP - VOIP TO T1/E1/PRI GATEWAY - Application

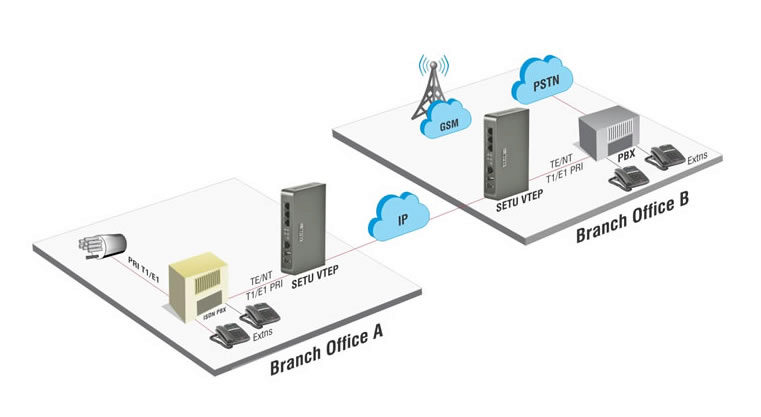

Peer-to-Peer Calling

  • Virtually Access Trunk Connectivity of Remote Locations
  • Connect Multiple Branch Offices over Cost-effective IP Network
  • Reduce Higher Inter-network Call Charges
  • Hop-on and Hop-off Calls to and from IP and ISDN PRI Network



SETU VTEP - VOIP TO T1/E1/PRI GATEWAY - Application





Specifications



Model:
VTEP Gateway with 32 VOIP Channels and One T1/E1 PRI Port



VoIP Port:
Protocol SIPv2, SDP, RTP (RFC 2833)
Connector Ethernet (RJ45)
SIP Accounts 32
Echo Cancellation G.168 with up to 128 ms Tail length
Voice Codecs G.711 (A/µ Law), G.723.1, G.729AB, GSM-FR, and iLBC



ISDN PRI Port:
Channels T1- 23B+D, E1- 30B+D
Connector RJ45
Operational Mode Software Configurable NT/TE modes
Switch Variant T1 RBS - AT&T 5ESS, DMS-100, US Ni2
E1 CAS - ETSI NET5, ITU-T Q.921, ITU-T Q.931
Framing T1 RBS - SF-D4/ESF
E1 CAS - CEPT1 (with/without CRC) with CAS MF



Power Supply:
Input External Power Adaptor Output: 5VDC@2A>
Power Consumption (Typical) 5W (Typical)



Other:
Dimension (WxHxD) 16.1x3.0x10.1 cm (6.3”x 1.18”x4”)
Mounting Options Wall Mount, Table Top, and Rack Mountable
Operating Temperature 0°C to +45°C (34°F to +113°F)
