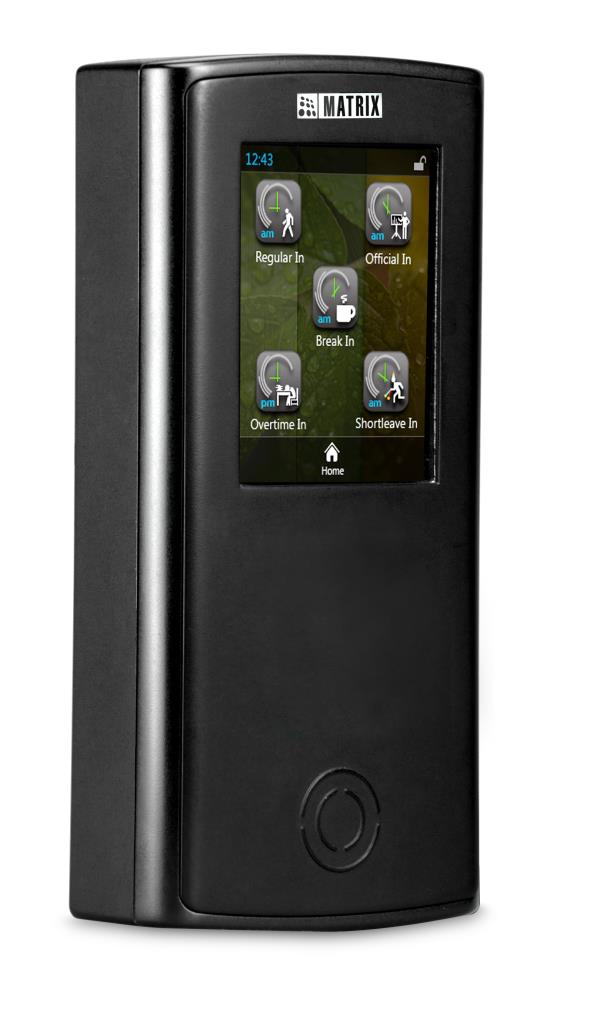

Cosec VEGA CAX - Door Controller




The COSEC VEGA CAX is designed to deliver a high level of flexibility in terms of time-attendance and access control. It’s engineered with a careful blend of aesthetics, connectivity, size, and reliability. It proves to be a perfect fit for Access Control and Time-Attendance solution required by modern organizations, irrespective of their size and operations.



     Cosec VEGA CAX - Door Controller



Key Features



  •  Excellent Design with Advanced Technology
    -3.5” TFT Touchscreen LCD
    -Compact Design
    -Pluggable Card Reader Module
    -IP65 Rating
    -Choose Credentials as per Requirement
  • Multiple Options for Connectivity
    -RFiD Card and PIN
    -Proximity and Smart Card
    -EM Prox, Mifare, and HID iCLASS
  • Multiple Options for Connectivity
    -Ethernet
    -Power over Ethernet (PoE)
    -Built-in Wi-Fi
    -Mobile Broadband 3G/4G (through USB Dongle)
  • Higher Capacity for Managing Multiple Users and Events
    -50,000 Users Capacity
    -Event Storage up to 5,00,000
  • Different Applications with Multiple Interfaces
    -Door Relay and Door Sense
    -Auxiliary Input and Output Port
    -Exit Reader and Exit Switch
    Powerful Device APIs to Perform Applications
    -Communication with Third-Party Software
    -Integration using Device API
    Easy Operation and Installation
    -User-Friendly GUI
    -Standalone and Network Operation
    -Easy Mounting on Back Plate
    -Leverage Existing Network Infrastructure
    -Minimum Wiring







Applications



  • Time-Attendance
  • Access Control
  • Visitor Management
  • Cafeteria Management
  • Contract Workers Management
  • Job Processing and Costing

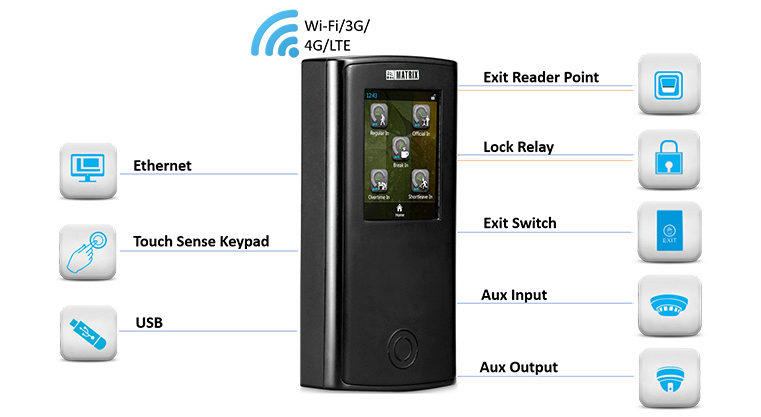

Interface Diagram



Cosec VEGA CAX - Door Controller



Technical Specifications



VariantsCOSEC VEGA CAX
Credential Support RFID Card and PIN
Cards Per User Up to Two
Type of Card EM Prox, Mifare, and HID iCLASS (Card Module is required)
User Capacity 50,000
Display 3.5" TFT Display with Capacitive Touch Panel
Communication Port Ethernet, Wi-Fi, Mobile Broadband (3G/4G Using USB Dongle)
Built-in PoE Yes
Built-in Wi-Fi Yes
USB One USB Port (for Data Transfer and Mobile Broadband)
Event Buffer 5,00,000
Exit Switch Port Yes
Exit Reader Yes
Reader Interface Types     RS-232 and Wiegand
Reader Power Output Internal 12VDC @ 0.5A or External
Door Status Sense Programmable NO, NC, Supervised
Door Lock Relay Relay SPDT, Form C, 1A @ 30VDC
Door Lock Power Internal 12VDC @ 0.5A or External
Aux-In Programmable NO, NC, Supervised
Aux-Out Relay SPDT, Form C, 1A @ 30VDC
Tamper Detection Yes
Input Power 12VDC @ 2A
Operating Temperature 0° C to +50°C (32°F to 122°F),
Humidity 5% to 95% RH Non-condensing
IP65 Verified
STQC Certified No
Certification CE,FCC PART15B(VOC),BIS,ROHS
Dimensions (mm) 91X186X38
Weight (kgs) 0.54
