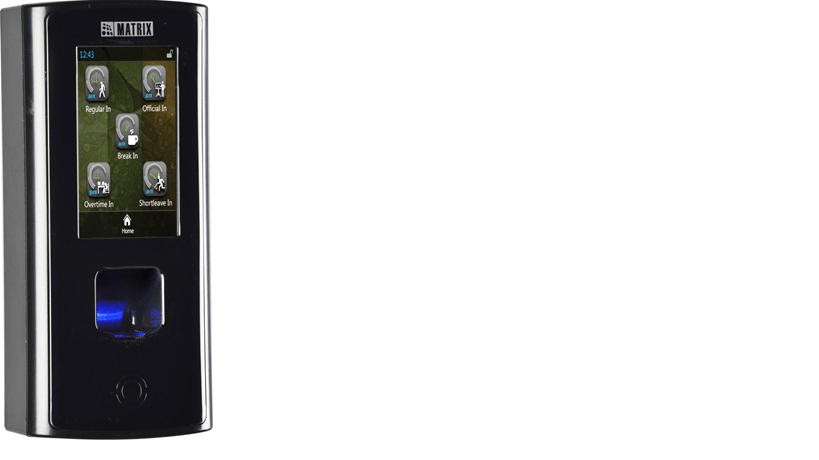

Cosec DOOR FMX - Fingerprint Door Controller




In the fast-paced evolution of technology, organizations have started adopting the biometric application systems for Access Control and Time-Attendance. This technology has enabled organizations to enhance security within their premises and organized the process of biometric applications. Compared to the traditional biometric readers scanning a single layer of skin, Multispectral Fingerprint Door Controller employs multi-layered reading.

The COSEC DOOR FMX is a high-performance door controller with multispectral sensor technology. It reads both - the surface and the subsurface of a finger producing a more accurate image even when the finger surface features are difficult to read due to dirt, usage, age or tough environmental conditions. Powered by a high-speed processor and fingerprint detection algorithm, DOOR FMX is specifically engineered for high-security industries including defense, airports, R&D labs, banks, mining, construction and heavy manufacturing for their security needs.

The COSEC DOOR FMX provides a significantly lesser False Acceptance Ratio (FAR) and False Rejection Ratio (FRR) making it ideal for both - high-security and harsh industrial applications. This unique identification process outperforms all other fingerprint sensors and offers robust and reliable biometric information of the user. DOOR FMX is a perfectly tailored product with 4.3" touch screen display and multiple connectivity options in a compact and elegant design. This makes it ideal for any Time-Attendance System and Access Control applications. Based on the powerful processor, DOOR FMX supports 500,000 events storage and 50,000 users in its memory, making it ideal even for large organizations with heavy and continuous flow of people. With an intuitive user interface TFT LCD display, DOOR FMX supports all time-attendance, access control, and enrolment functions. It is simple to install and operate with multiple connectivity options and wall mounting.



     Cosec DOOR FMX - Fingerprint Door Controller

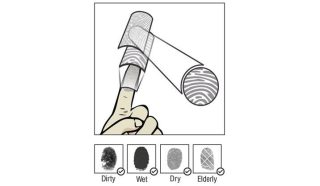

cosec door fmx applicationCondition Usage AreaIndustry/Target Audience
Dry   Deserts Construction, Manufacturing
Wet or Oily   Humid, Rainy Gym, Chemical, Manufacturing
Dirty   Dusty Regions, Outdoor Application     Manufacturing, Mines, Transportation
Bright Light   Outdoor Application Construction
Variable Pressure        Children and Aged Users Education, Club, Health Care





Key Features



  • Superior Design which Enhances the Look of your Premises
    -Well-engineered Product
    -4.3" Touch-screen Capacitive Display
  • Better Capacity
    -Multispectral Fingerprint Controller with 50,000 Users Capacity
    -500,000 Events Storage Capacity
  • Select Credential as per Requirement
    -Fingerprint, RFID Card and PIN
    -Proximity and Smart Cards
    -EM Prox, HID Prox, Mifare, and HID iCLASS
  • Multiple Connectivity Options
    -Wired Options: Ethernet, PoE
    -Wireless Options: Wi-Fi, 3G/4G
  • Convenient Operation and Installation
    -User-Friendly UI
    -Standalone and Network Operation
    -Easy Mounting on a Back Plate
    -Leverage Existing Network Infrastructure
    -Minimum Wiring
  • Various Interfaces to Control Various Applications
    -Door Relay and Door Sense
    -Auxiliary Input and Output Ports
    -Exit Reader and Exit Switch
  • Saves Time by Quick Fingerprint Identification
    -Identification in Less than One Second
    -1:1 and 1:N Verification
  • Perform functions faster from the Device itself
    -Patented Lumidigm Biometric Fingerprint Sensor
    -User Enrolment from Device
    -Perform Attendance Functions
    -Fetch the Event Data via USB
  • Perform Applications using APIs
    -Communication with Third-Party Software
    -Integration using Device API
    -Device and User Configuration, Enrolment, Transfer of Commands and Events







Applications



  • Time-Attendance
  • Access Control
  • Visitor Management
  • Cafeteria Management
  • Contract Workers Management

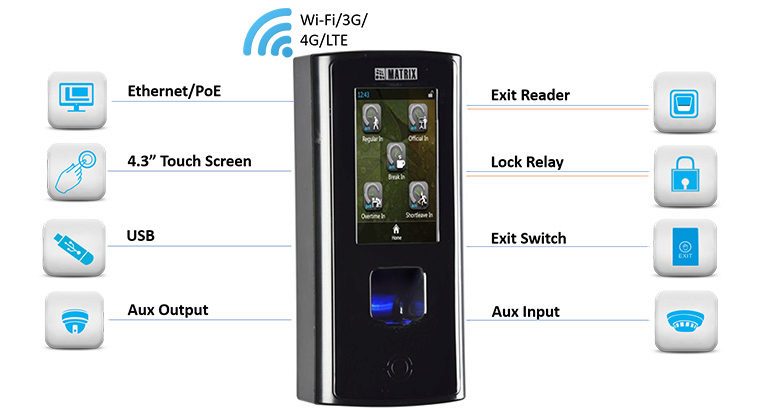

Interface Diagram



Cosec DOOR FMX - Fingerprint Door Controller







Technical Specifications



Credential Support Fingerprint, RFID Card and PIN
Display 4.3" Capacitive Touch Screen
User Capacity 1000 (1:N) and 50,000 (1:1)*
Template Capacity 1000 (1:N) and 100,000 (1:1)
Cards Per User Up to 2
Types of Cards Support EM Prox, HID Prox, HID iClass and Mifare (COSEC CPM Module Required)
Event Buffer 500,000
Communication Ethernet, PoE, Wi-Fi and Mobile Broadband (3G/4G)
Exit Switch Yes
Door Status Sense Programmable NO, NC and Supervised
Door Lock Relay Form C and SPDT Relay (Max 2A@30 VDC)
Door Lock Power 12VDC @ 1A (for Adaptor Supply Mode) 12VDC @ 0.5A (For PoE Supply Mode)
Aux-IN Programmable NO, NC and Supervised
Aux-OUT Form C and SPDT Relay (Max 2A@30 VDC)
Reader Interface types RS 232 and Wiegand In Only
USB 2 (1 for Data Transfer and 1 for Broadband Dongle)
CPU 800 MHz ARM Cortex A8 based Processor
Flash Memory 256MB Flash
RAM Memory 512 MB DDR3 RAM
Micro SD Card Yes (Inbuilt 4 GB)
Input Power 12VDC @ 2A
Battery Backup No Internal Battery Backup and External through Power Supply Battery Backup (PSBB)
Dimensions (WxHxD) 100mm x 220mm x 56mm (3.9" x 8.7" x 2.2")
Weight 0.6kg (1.32 lbs)
Humidity 5% to 85% RH Non-condensing
Operating Temperature    0°C to + 50°C (32°F to 122°F)
System Integration API for Software Integration
Operational Mode Direct Door with COSEC CENTRA Server
Tamper Detection Yes
Sensor Technology Multispectral Lumidigm Sensor with LFD
Sensing Area 27mm x 30mm x 41mm
