Cosec READER CB - RFID Card Reader

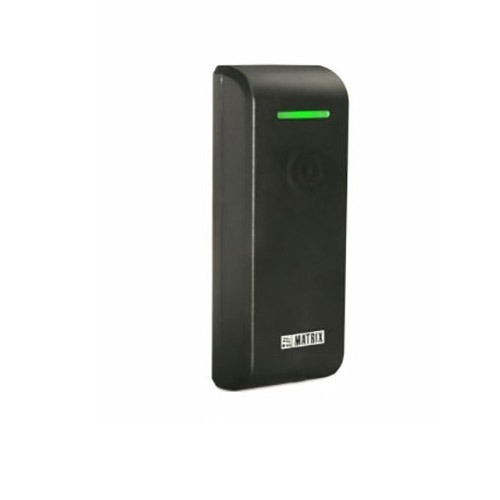

Most access control card readers are now totally open to being compromised and vulnerable to attacks because of copied and fake credentials. To overcome this problem, Cosec has come up with state-of-the-art technology. The COSEC READER CB is Bluetooth based contactless smart card reader which facilitates easy communication through a smartphone. Ultimately, this access card reader gives immense and unparalleled comfort to the user. It also supports widely used smart and proximity RFID cards for different applications. The COSEC READER CB has a Wiegand interface to connect with third party access control panels. Compact size and secured communication between door card reader and controller make COSEC READER CB a convenient solution for Access Control applications in any organization.
Key Features
- Bluetooth over Mobile
-Convenience
-Security - Multiple Card Types
-Mifare Smart
-HID iCLASS
-HID Prox
-EM Prox card - Card Personality Module
-Easy to Plug and Unplug
-Easy to Upgrade - Compact Design
-Fits with Any Building Design
-Elegant - LED and Buzzer
-Audio-Visual Indication for Predefined Events
-Faster Response - Secured Communication
-SSL Encryption
-Difficult to Breach - Work with Third-Party Access Panel
-Supports Universal Wiegand Interface
-Interoperability - Multiple Interfaces
-RS-485 and RS-232
-Wiegand - Tamper Detection
-Sense and Give Alarm
-Higher Security - Easy to Use and Install
-Faster Installation
-Less Wiring - Deployment Modes

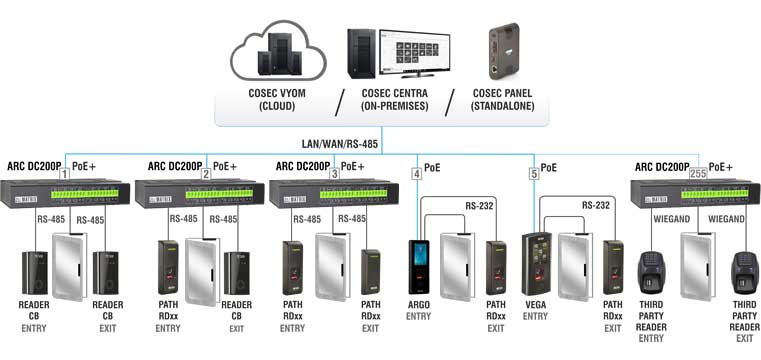

-Work with Any COSEC Door Controller on RS-485 or RS-232
-With PANEL LITE - No Server Requirement
Applications
- Access Control
Solution
Technical Specifications
| GENERAL | |
|---|---|
| Type | A slave reader who can work with COSEC Door Controllers and 3rd party Wiegand interface Access Control Panel. |
| Credential Support | Card and Mobile Credential over BLE |
| CAPACITY | |
| User Capacity | Depends on Master Device |
| Card Storage Capacity | Depends on Master Device |
| CARD READER | |
| Type of Card Support | Mifare Smart, HID iCLASS, EM Prox, HID Prox, (CPM module Required; Supports DOOR CPM module) |
| Card Read Range | Up to 5cm from Device Surface |
| INTERFACE | |
| Tamper Detection | Yes |
| AUDIO VISUALS | |
| LED | 4 Single Color LEDs LED 1 - ALLOWED, LED 2 - DENIED, LED 3 - STATUS *, LED 4 - ALARM * * Not used in Wiegand Communication |
| Buzzer | Yes |
| COMMUNICATION | |
| Built-in Bluetooth | YES (BLE 4.0 and above) Bluetooth Functionality will Work with the COSEC APTA Application. |
| Reader Interface | RS-232, RS-485, and Wiegand |
| Interface Support Length | RS232 (3meter), RS485 (1200meter), Wiegand (150meter) |
| POWER | |
| Input Power | 5-16 VDC@ max 150MA |
| ENVIRONMENTAL | |
| Operating Temperatures | 0 °C to +50 °C (32°F to 122°F) |
| Humidity Range | 10% to 95% RH Non-Condensing |
| CERTIFICATION | |
| Certification | CE, RoHS, BIS and FCC Part 15 |
| PACKAGING | |
| Packaging | 1. Main unit - COSEC READER CB 2. Back Plate 3. Reader Cable Assembly 4. Screws and other Mounting Accessories |
