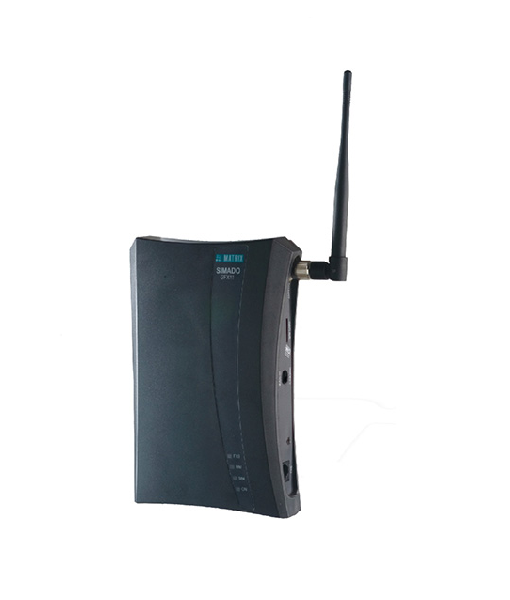

Matrix GFX11E - Fixed Cellular Terminal for Emergency Applications
The GFX11E is a fixed cellular terminal specially designed for Emergency Applications in areas where GSM network is weak. A GSM desk phone can be installed where it is easy to get GSM signal, such as at a high endpoint and its extension can be installed at the location where GSM signal is weak, such as Elevators or underground areas. The extension can be directly used by simply lifting up the receiver and the call will be connected with the help center instantly. This GSM FCT can also be used in hospitals and senior citizen houses, where you face such emergency circumstances and people are unable to call for help during a panicky situation.
The GFX11E is a Fixed Cellular Terminal (FCT) with built-in battery back-up useful for Power Cut and Emergency Applications. During emergency situations, a caller can quickly connect with an emergency service or a hotline number by simply lifting the handset. When power fails, GFX11E with battery backup enables the user to establish a link with the help center. The GFX11E can be used in various areas such as elevators (Elevator Emergency Phone), ATMs, parkades, hospitals, shopping malls, and senior citizen’s homes.
Key Features
- One GSM SIM and One FXS Port footer
- Built-in Rechargeable Battery
- Hotline Number Support
- Emergency Number Dialing even in Absence of SIM Card
- Automatic Number Translation
- SMS Notification when Power Failure
- Automatic Network Selection
- Signal Strength Indication
- Quad-band GSM and Tri-band 3G Support
Applications

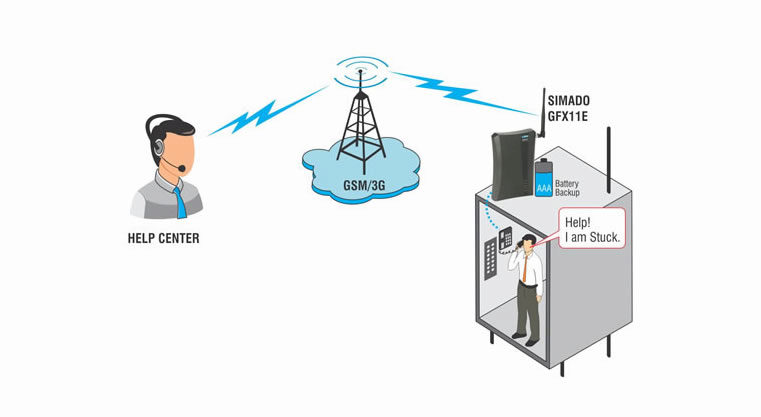

Elevator Emergency Phone Application
- During a power failure, people stuck in critical conditions need an emergency backup solution for seeking rescue from the help center.
- In this condition, GFX11E with a built-in battery can establish a communication link with the help center and emergency services.
- Victims can use the GSM fixed terminal connected with GFX11E and hotline service or dial emergency help center numbers immediately.
- During a power cut or low battery, GFX11E sends SMS notifications to the service center.
- Emergency services such as Fire, Police, Ambulance, and others can be reached even if the SIM is not present.
Specifications
| Mobile Port: | |
|---|---|
| GSM/3G SIM Cards | One |
| Frequency Bands | Quad-band GSM 850/900/1800/1900MHz Tri-band WCDMA 850/1900/2100MHz Tri-band WCDMA 900/1900/2100MHz |
| SIM Interface | 1.8, 3V SIM Interface |
| Compliance | ETSI GSM Phase2/2+ |
| FXS Port: | |
| Connector | RJ11 |
| Dialing and Reception | Pulse and DTMF Dialing |
| CLIP | DTMF and FSK CLI Presentation |
| Answering and Disconnect Signaling | Polarity Reversal for Call Connect/Disconnect Signaling |
| Power Supply: | |
| External Power Adaptor | Input: 100-240VAC, 47-63Hz Output: 12VDC@1.25A Power Consumption: 5W (Typical) |
| Battery | Type: NI-MH AAA 7.2v/800mA Talk Time Mode: Two Hours Idle Mode: Four Hours |
| Other: | |
| Dimension (WXHXD) | 19.8X4.5X13.4cm (7.79”x 1.77”x 5.27”) |
| Mounting Options | Wall Mount and Table Top |
| Unit Weight | 0.395 kg (0.87lbs.) Approx. |
| Operating Temperature | 0˚C to +45˚C (34˚F to +113˚F) |
