Cosec Argo - Biometric Door Controller

Live Search

Tel: 410-583-1701     Email: Sales & Technical

Cosec Argo - Biometric Door Controller




One of the major concerns for any business is the factor of security. The installation of a reliable system plays a vital role in assuring maximum security, both internally and externally. The adoption of Access Control and Time-Attendance solution and deployments in different sized organizations have gained prominence and has evolved profoundly over the years. Still, the door controllers used for authentication have their own limitations when aesthetics and performance are prime aspects and objectives of any security needs of any organization. Moreover, the performance of the door controller fails when the installation is for critical outdoor deployments and when it comes to next-generation connectivity.

The COSEC ARGO is a performance, design and engineering wonder that will revolutionize the way organizations resolve security challenges of protecting valuable assets and employees. It is an intelligent next-generation biometric door controller with an enhanced 3.5’’ IPS Touchscreen LCD for a visually splendid experience. The Performance and Elegance Redefined – COSEC ARGO is a universal device for multiple applications such as Access Control, Time-Attendance, Cafeteria management, and Job Processing & Costing that removes the need of dedicated hardware for diverse solutions. The New Age COSEC ARGO provides enhanced scratch-proof and impact resistance with an IPS LCD touchscreen display. It’s a complete door controller for high-performance Access Control and Time-Attendance applications suitable for various usage installations such as Office Main Entry, Reception, Floor Main Entrance, Server Room and more.



     Cosec Argo - Biometric Door Controller

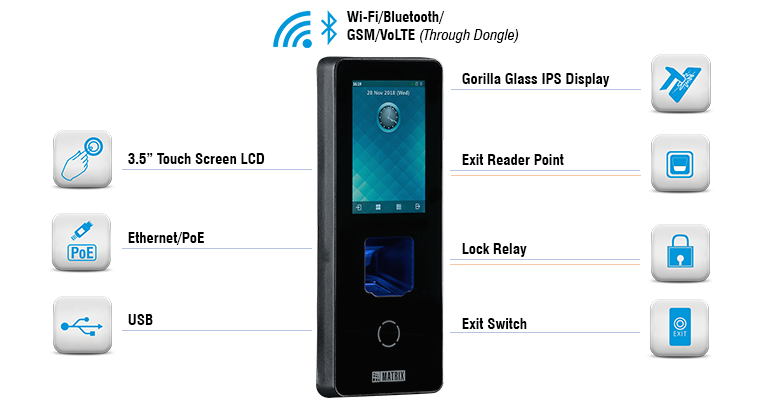

Key Features



  •  User Friendly Design
    -Intuitive User Experience
    -Ultrafast User Identification
  • Gorilla Glass IPS Display
    -Impact Resistant
    -Scratch Proof
  • IK08 and IP65 Design
    -Vandal Resistant
    -Weather Proof
  • Long Product Life
    -IPS Touchscreen LCD
    -Better Performance
  • Higher Capacity to Manage Users and Events
    -1,00,000 Templates
    -5,00,000 Events Buffer
    -50,000 Users
  • Ultrafast Access and Higher Security
    -1:1 and 1:N Verification
    -Faster Identification through Server
    -Tamper Detection
  • Multiple Access Control Interfaces
    -Door Relay and Door Sense
    -Exit Reader and Exit Switch
  • Choose Credentials as per Requirement
    -Fingerprint
    -Proximity and Smart Cards
    -PIN
  • Future Ready Technologies
    -Bluetooth
    -Built-in Wi-Fi
    -PoE
    -Ethernet
    -GSM/VoLTE (Through Dongle)
  • Deployment Modes
    -COSEC CENTRA – On-Premise
    -COSEC VYOM – Cloud-based
    -Standalone Solution







Applications



  • Time-Attendance
  • Access Control
  • Cafeteria Management
  • Job Processing and Costing







Technical Specifications



GENERAL
Credential Support Fingerprint, RFID Card and PIN
IP Rating IP65 (With wall mounting installation condition and flush mounting with recommended installation surface)
RF Option Smart Cards - Mifare and NFC Tag and HID iCLASS
Proximity Cards - EM Prox and HID Prox
(Separate variant for each card type. HID PROX requires HID iCLASS type)
CAPACITY
Maximum Users 50,000
Maximum Templates 25,000 in 1: N Mode and 100,000 in 1:1 Mode (Optical sensing technology)
Event Buffer 500,000
Templates per User Up to 10 (Single template per finger mode)
Up to 5 (Dual template per finger mode)
Cards per User Up to 2
COMMUNICATION
Wi-Fi Yes (802.11 b/g/n)
Bluetooth Yes
Ethernet Yes (10/100 Mbps)
PoE Yes (IEEE 802.3 af)
RS-232 Yes
Mobile Broadband Yes
Wiegand Wiegand IN/OUT Available
USB 1 Micro-USB Port (Data transfer and 2G-3G dongle)
INTERFACE
Exit Switch Port Yes
Door Status Sense Programmable NO, NC, Supervised
Door Lock Relay 30V DC @ 2 A, Form C, SPDT Relay
Door Lock Power Internal 12V DC @ Max. 0.5A or External
(*External power supply is recommended for >500ma locks supply)
Aux-In No
Aux-Out No
Reader Interface Types RS-232 and Wiegand IN/OUT
Micro SD Card Yes (Inbuilt 8GB)
HARDWARE
CPU 800 MHz ARM Cortex A8 based Processor
Memory 512 MB Flash + 512 MB DDR3 RAM
Display 3.5" IPS Display with Capacitive Touch Panel with Gorilla Glass
Display Resolution 320 x 480 Pixel
Buzzer Yes
Operating Temperature 0°C to +50°C
Humidity 5% to 85% RH Non-Condensing
Tamper Detection Yes
Power 12V DC @ 2A
Power to Door Lock 12V DC @ 0.5A (Power to external Lock from Device)
Dimensions (W x H x D)    74mm x 186mm x 50mm
Weight 0.549Kgs (1.21Lbs)
COMPATIBILITY
System Integration API for Software Integration
Operational Modes Direct Door with COSEC CENTRA Server
Panel Door with COSEC PANEL LITE V2
