IS-640P - IP Wood Wall Mount Speaker




IP Wood Wall Mount Speaker

The IS-640P is an IP based Wood Wall Mount Speaker (POE) providing a user-friendly control and simple voice broadcasting. The product is designed to provide simplified use and attractive aesthetics for any office, department store, factory, school or any business to be able to quickly broadcast announcements to their assigned office, branch or classroom. The IS-640P can work point to point, IP to IP and is compatible with most any IP-PBX, Traditional PBX or Asterisk based system.

IS-640P - IP wall Mount Speaker

Features:



  • Attractive wood appearance
  • SIP (RFC 3261) compatible
  • Web-based configuration
  • Web-based firmware upgradable
  • High-efficiency speaker driver
  • Powerful built-in amplifier: 20W
  • POE (Power over Ethernet)
  • Remote control
  • Works with optional IP Speaker Server for group broadcasts



Specifications:



  • Speaker:6.5" + 2 "
  • Protocols:SIP (RFC2543,RFC3261)
  • Codec:G.711 u-Law,G.711 a-Law,G.729A,G.729A/B
  • LAN connection :RJ-45 connector
  • Ethernet I/F 10/100 Mbps
  • option: Power over Ethernet(POE) injector
    spec: IEEE 802.3at (max.30W)
    (compatible with non-standard/standard POE Injector,POE Switch)
  • Dimensions: 17.5 X 28 X 24.5cm
    Weight: 3kg
  • Warranty: 1 year



Application:

  • System Integrator
  • Large Multinational Corporation
  • Design firm



Installation Locations:

  • Business (Office, Hotel, Restaurant, Shopping Center, Coffice Shop, prison, hospital, factory, government)
  • Education (School, university, Stadium, School corridor)
  • Public Place (Museum, Reception, Play Place)
  • Transportation (Airport, Parking lot, Goods Yard, Train station)

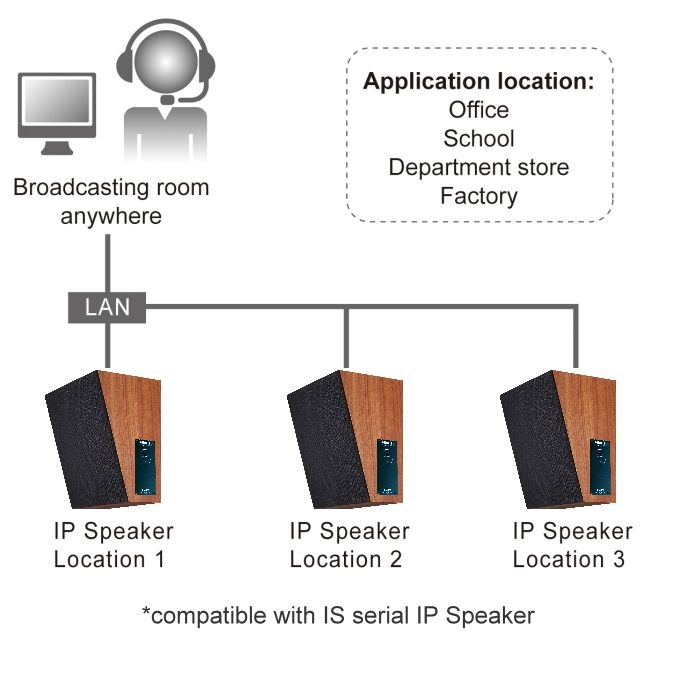

IS-640P application

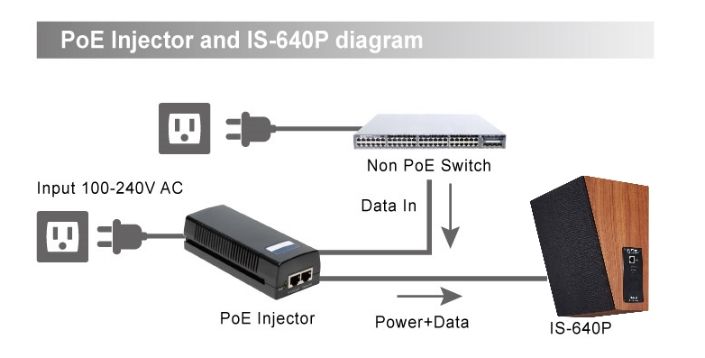

IS-640P POE application





IS-670 specifications
