MV-370 - Cellular to VoIP Gateway




1 port VoIP GSM/UMTS Gateway

The MV-370 is a 1 channel VoIP GSM/UMTS/4G LTE Gateway for call termination (VoIP to GSM/UMTS/LTE ) and origination ( GSM/UMTS/LTE to VoIP). The system is SIP based and compatible with Asterisk, Trixbox, 3CX, SIP Proxy Server, and VoipBuster. It can be enabled to make up to 1 call from an IP phone to GSM/UMTS/LTE networks and GSM/UMTS/LTE networks to IP phone.



Portech MV-370 - Cellular Media Gateway



Features:



  • VoIP (SIP) <-> GSM/UMTS/LTE Conversion
  • Supports LCR (Least Cost Routing) for cost reduction
  • SMS/Text receiving and sending
  • Support for AT Commands - Allows control from external applications or programs
  • Voice response for settings and status (dial in from mobile phone).
  • Call Back Service
  • Enable 1-stage dialing or 2-stage dialing
  • Backup of CDRs
  • Supports Virtual SIM with Remote SIM Management (1 SIM or MultiSIM)
  • Supports USSD Command (SIM Balance and Recharge value)
  • Easy Web-based interface management
  • 1-year warranty
  • 2G/3G Frequency Bands:
    A version 850/900/1800/1900 MHz
    G version 800/850/900/1800/1900/2100 Mhz
  • 4G Frequency Bands:
    LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
    LTE TDD: B38/B39/B40/B41
    WCDMA: B1/B2/B4/B5/B6/B8/B19
    GSM: B2/B3/B5/B8
  • Protocols: SIP (RFC2543,RFC3261)
  • TCP/IP:IP/TCP/UDP/RTP/RTCP/,CMP/ARP/RARP/SNTP,DHCP/DNS Client,IEEE802.1P/Q,ToS/DiffServ,NAT Traversal,STUN,uPnP,IP Assignment,Static IP,DHCP,PPPoE
  • Codec: G.711 u-Law,G.711 a-Law,G.729A,G.729A/B
  • Voice Quality: VAD, CNG, AEC, LEC, and Packet loss

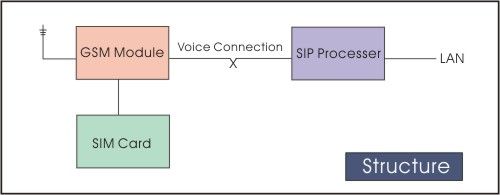

mv-370 basic structure diagram



Applications:

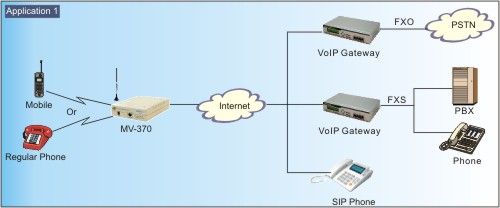

Portech MV-370 Gateway - Application

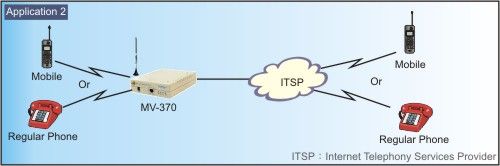

mv-370 diagram application

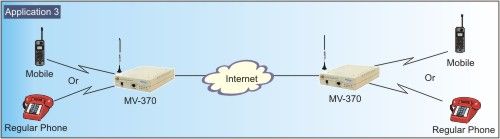

mv-370 diagram application 3



Optional GSM Booster: BT-918/BT-921
It can improve the cellular signal in poor reception areas. Simple installation
